ÖVERSIKTAlla sprängskisser

52 GRUPPER

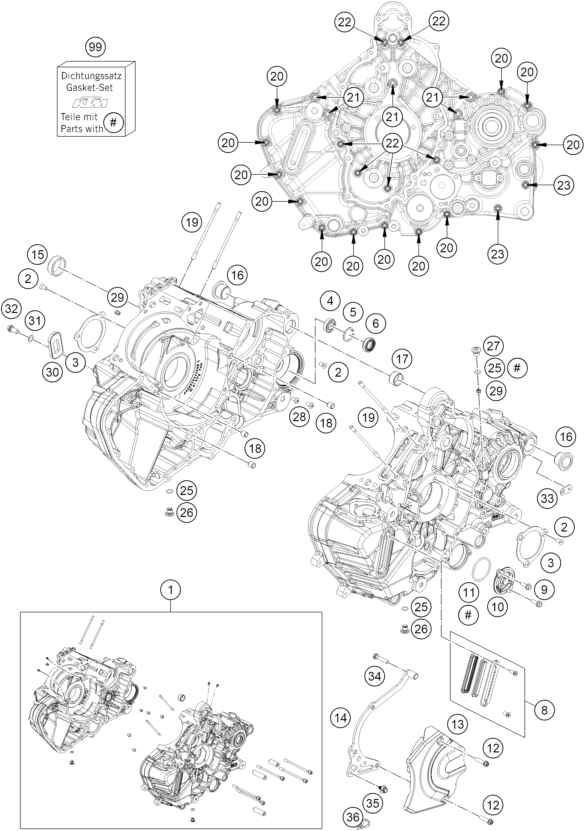

01 · MOTOREngine Case35 POS→

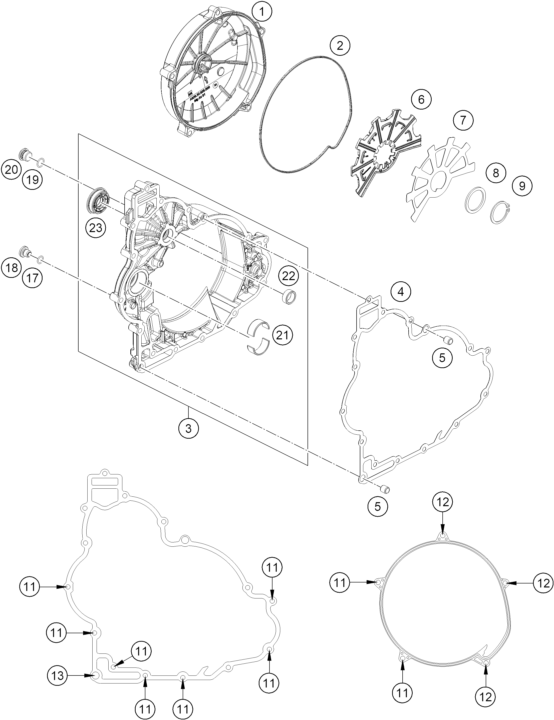

02 · MOTORClutch Cover19 POS→

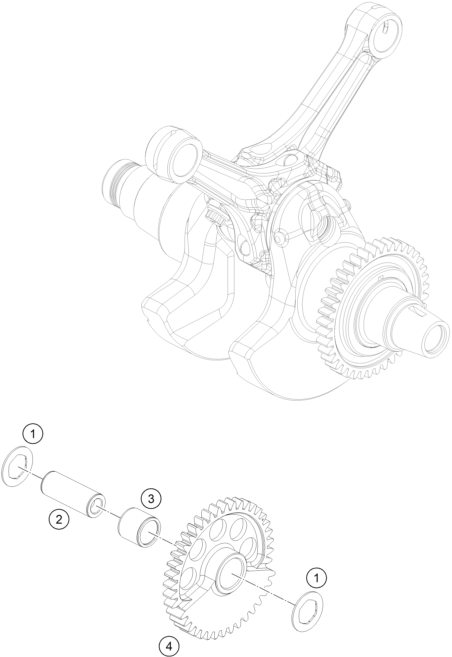

03 · MOTORBalancer Shaft4 POS→

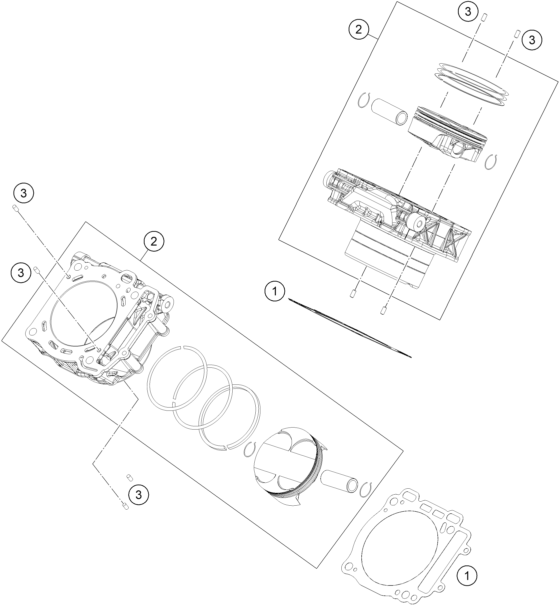

04 · MOTORCylinder3 POS→

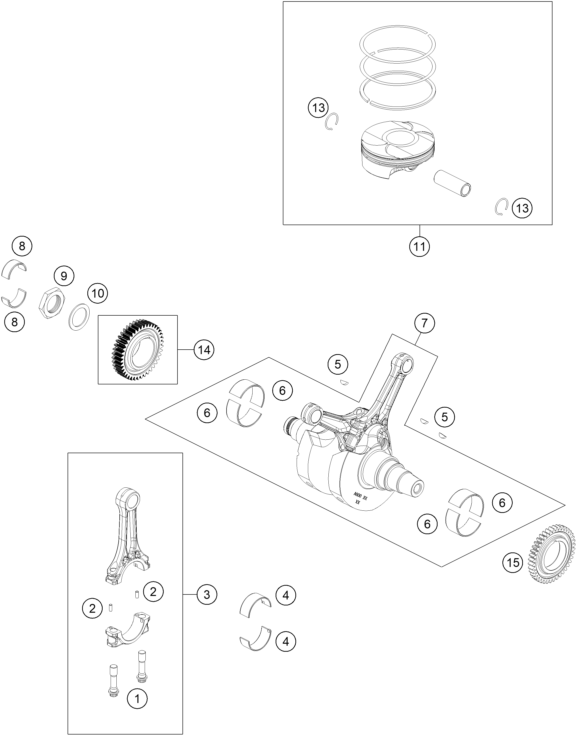

05 · MOTORCrankshaft, Piston19 POS→

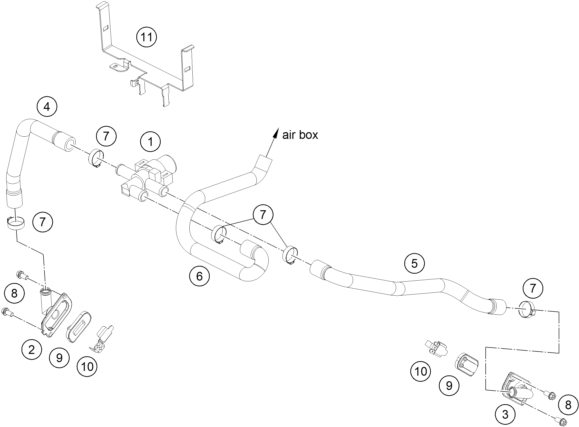

06 · MOTORSecondary Air System Sas11 POS→

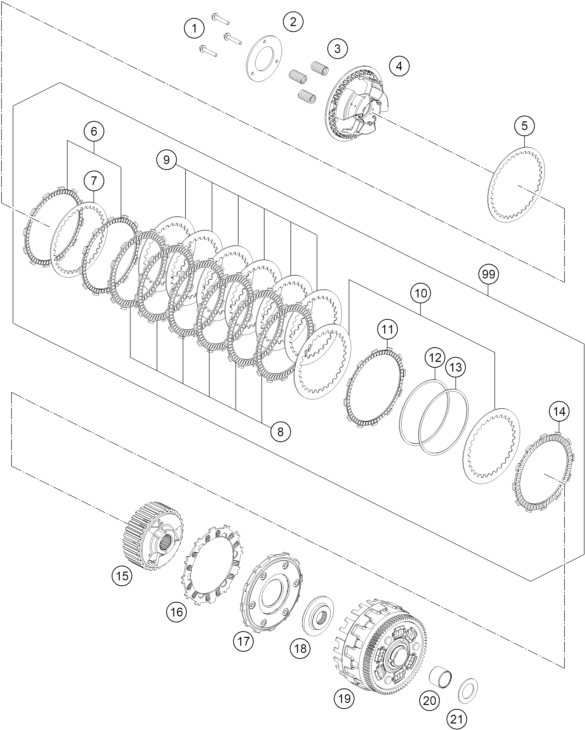

07 · MOTORClutch29 POS→

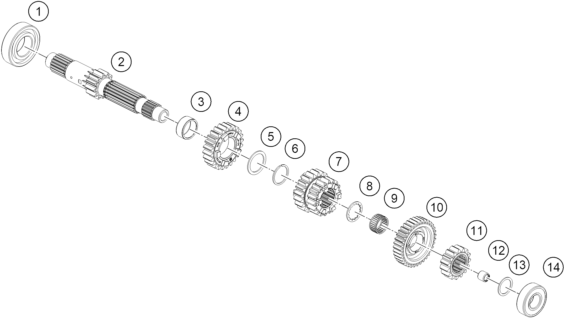

08 · MOTORTransmission I - Main Shaft21 POS→

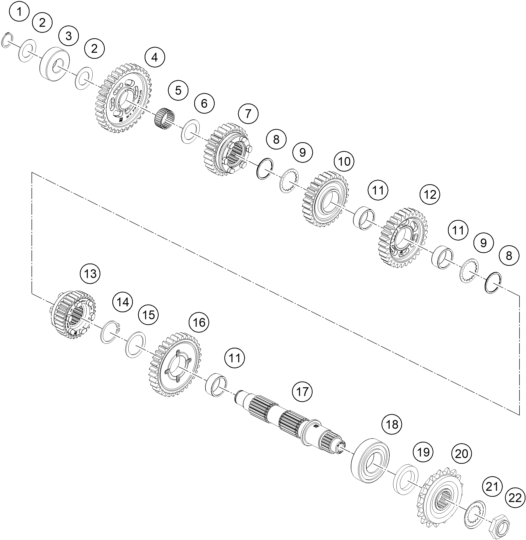

09 · MOTORTransmission II - Countershaft22 POS→

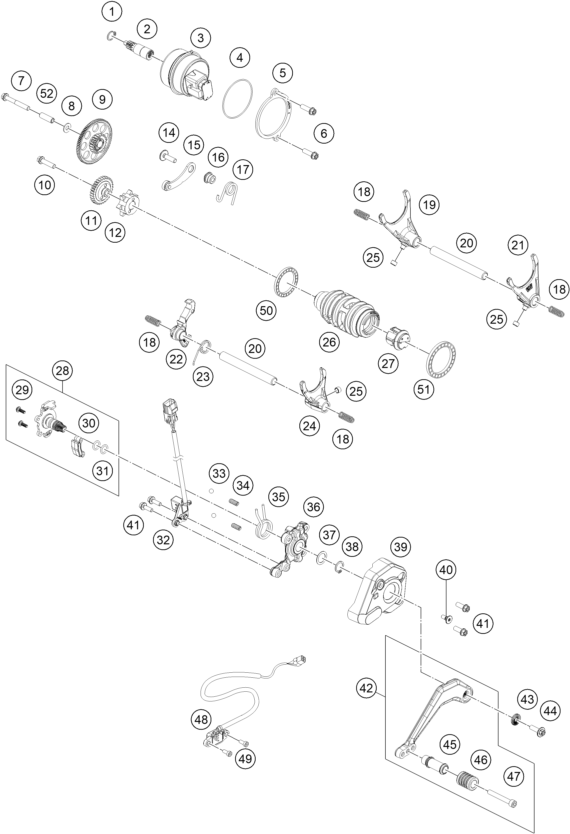

10 · MOTORShifting Mechanism51 POS→

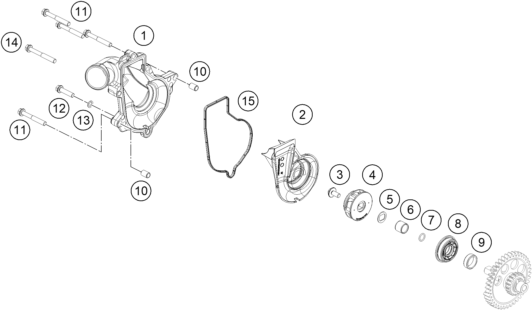

11 · MOTORWater Pump15 POS→

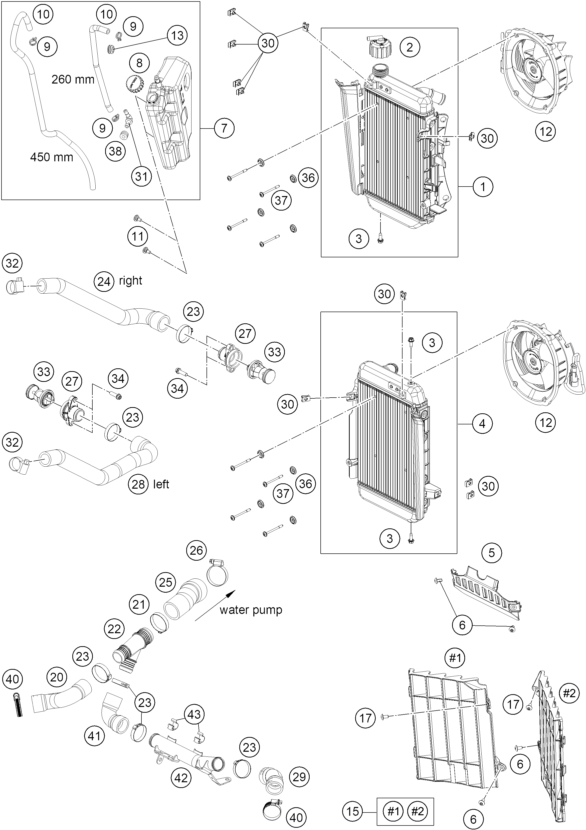

12 · MOTORCooling System37 POS→

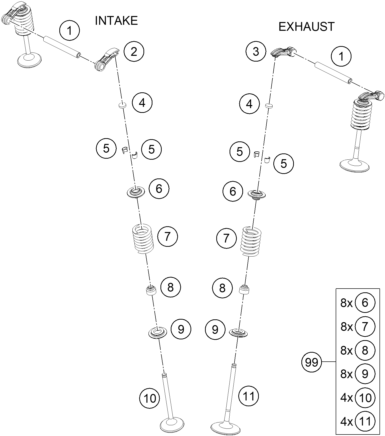

13 · MOTORValve Drive37 POS→

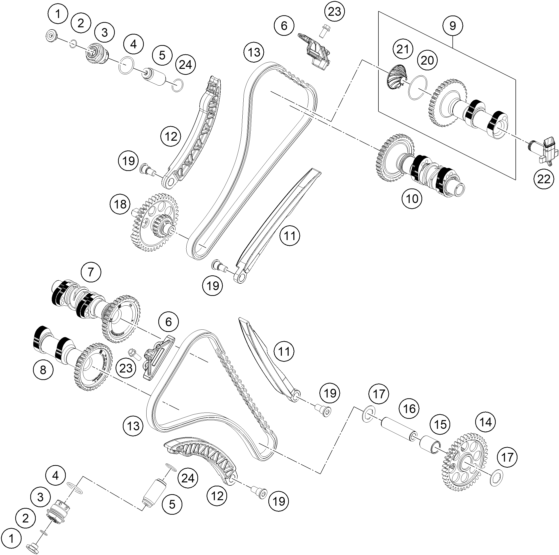

14 · MOTORTiming Drive24 POS→

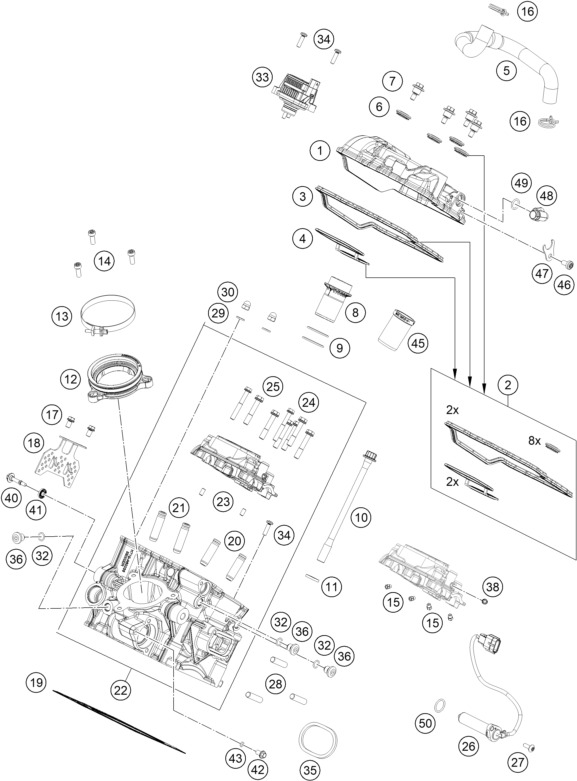

15 · MOTORCylinder Head Rear48 POS→

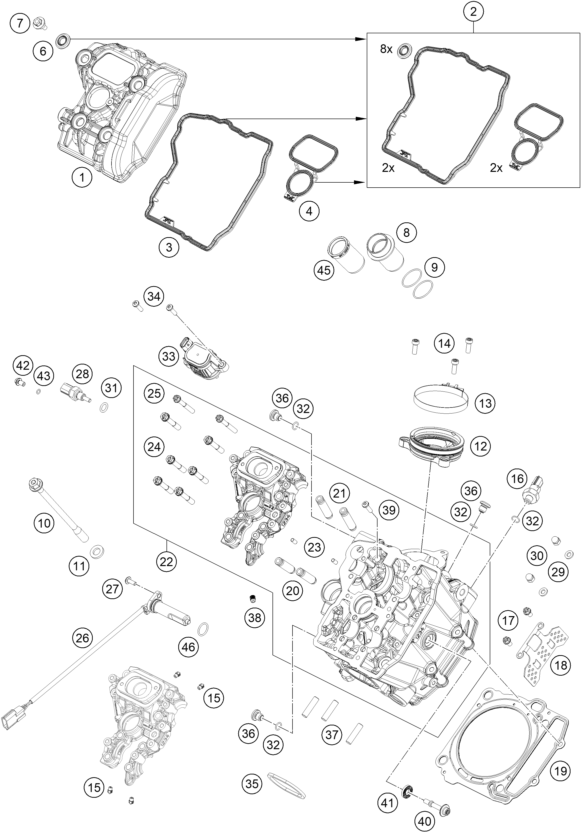

16 · MOTORCylinder Head Front46 POS→

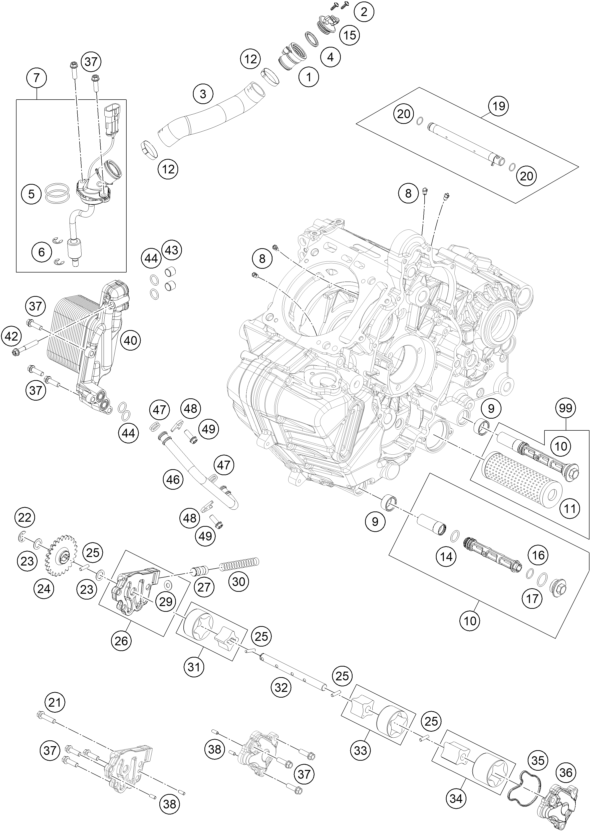

17 · MOTORLubricating System44 POS→

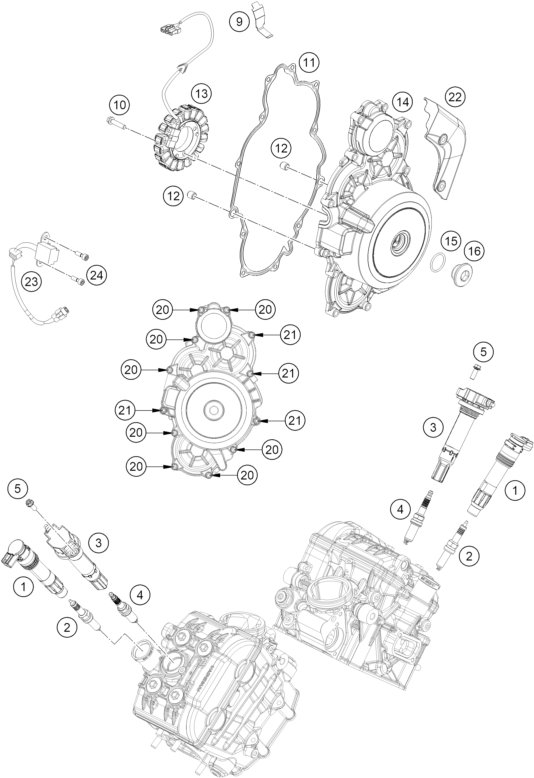

18 · MOTORIgnition System18 POS→

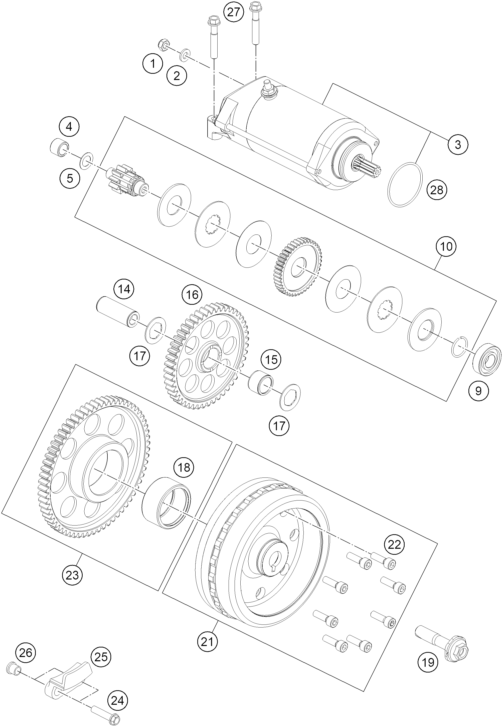

19 · MOTORElectric Starter21 POS→

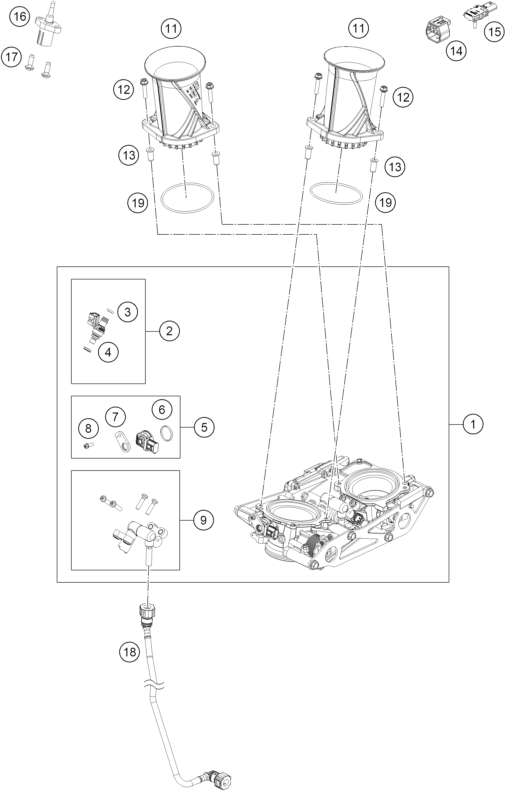

20 · MOTORThrottle Body18 POS→

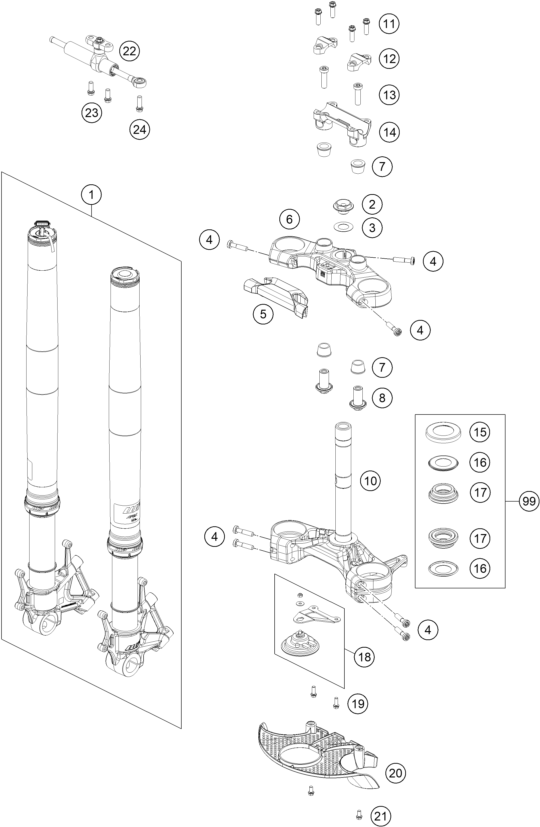

01 · RAM & CHASSIFront Fork, Triple Clamp24 POS→

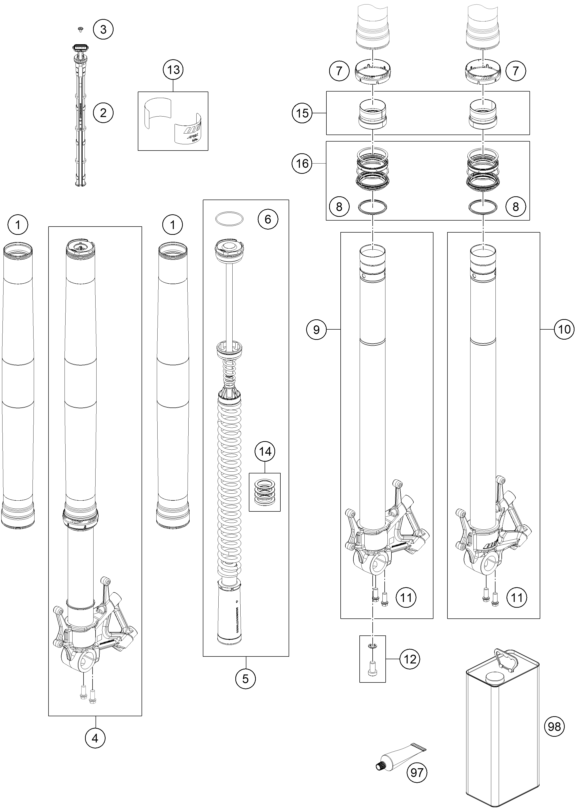

02 · RAM & CHASSIFront Fork Disassembled18 POS→

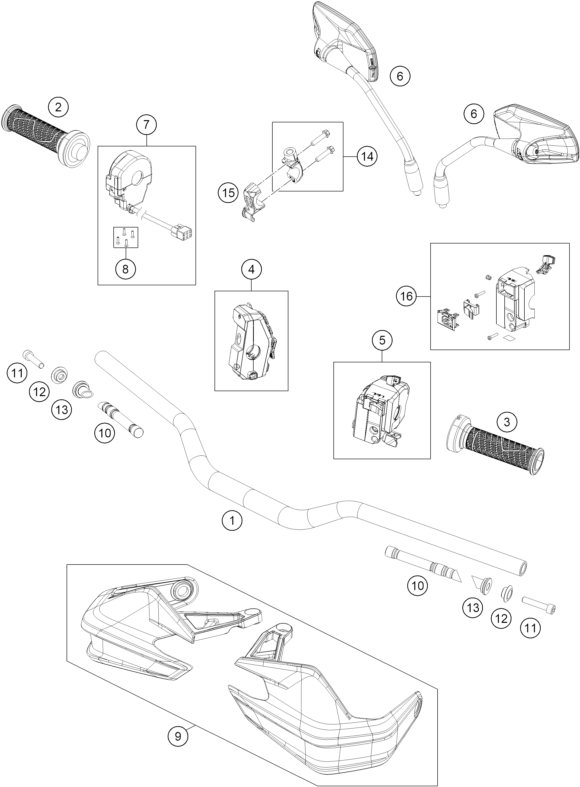

03 · RAM & CHASSIHandlebar, Controls16 POS→

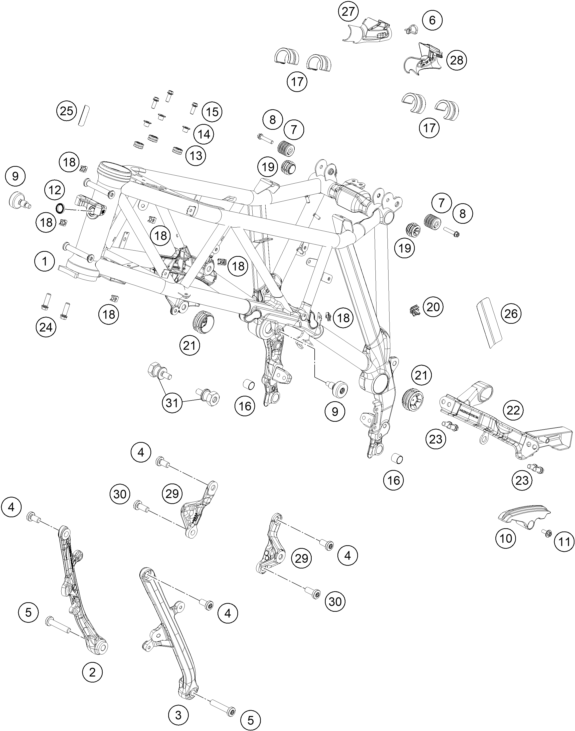

04 · RAM & CHASSIFrame31 POS→

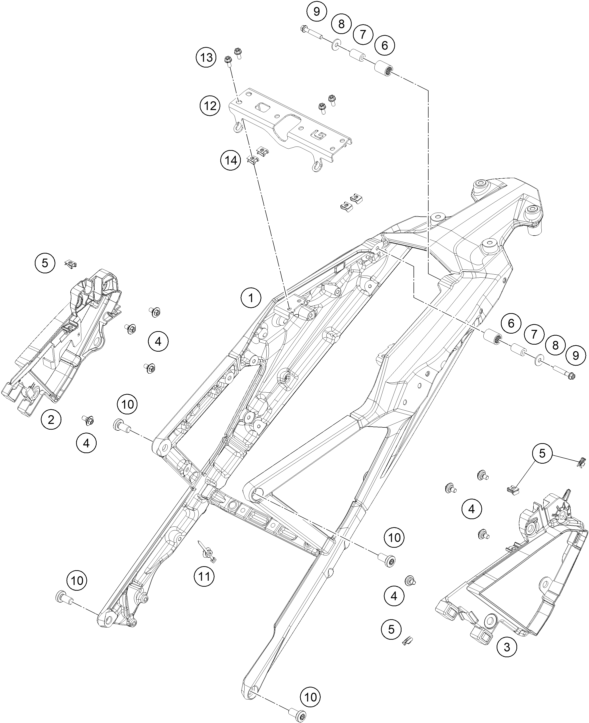

05 · RAM & CHASSISubframe14 POS→

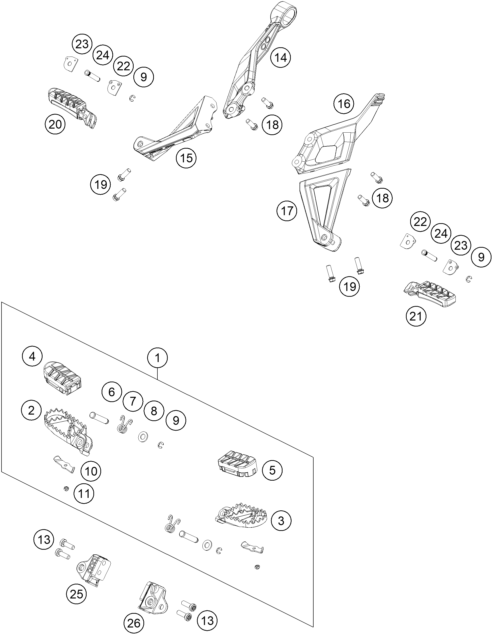

06 · RAM & CHASSIFootpegs25 POS→

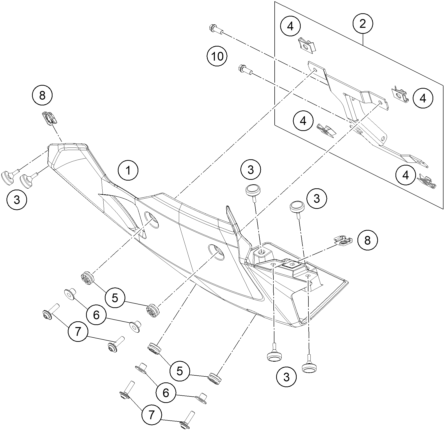

07 · RAM & CHASSIEngine Guard9 POS→

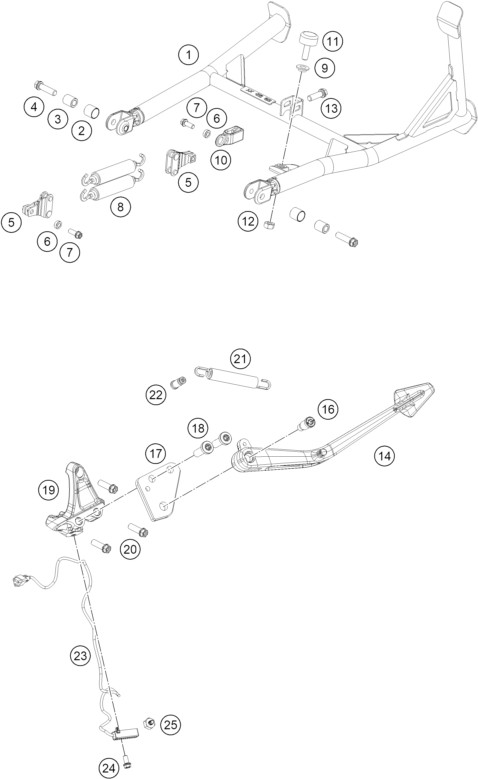

08 · RAM & CHASSISide / Center Stand24 POS→

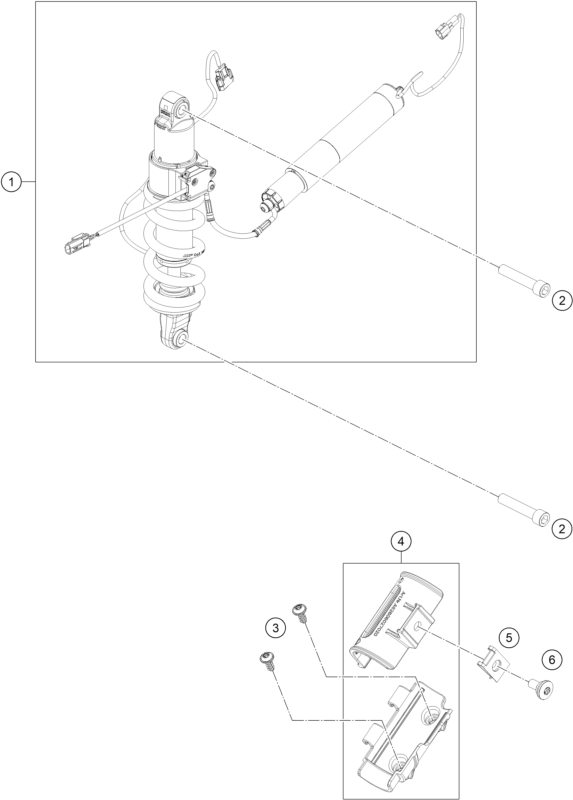

09 · RAM & CHASSIShock Absorber6 POS→

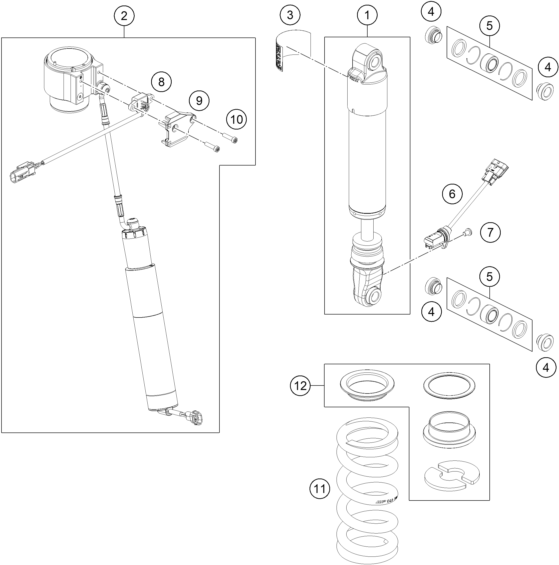

10 · RAM & CHASSIShock Absorber Disassembled12 POS→

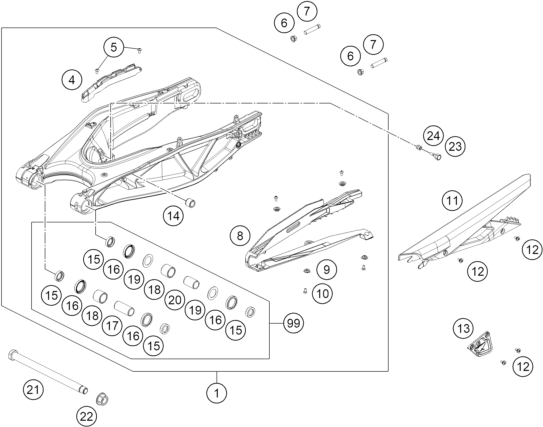

11 · RAM & CHASSISwing Arm23 POS→

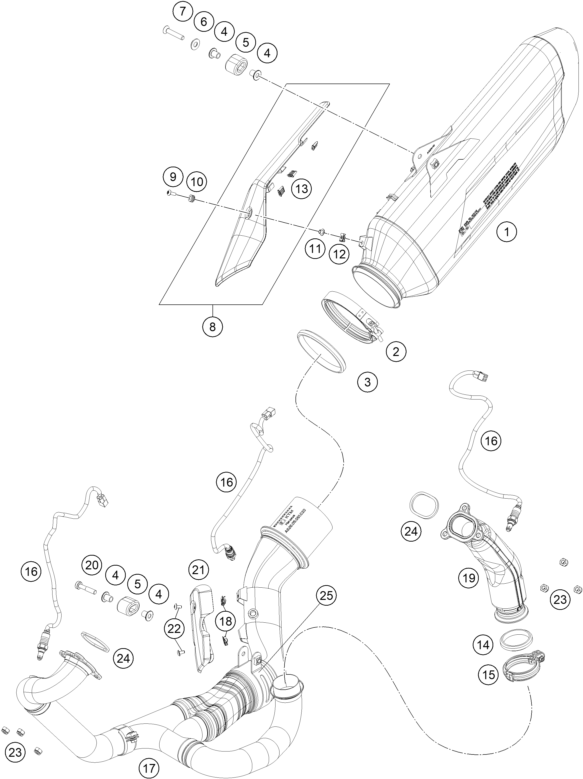

12 · RAM & CHASSIExhaust System25 POS→

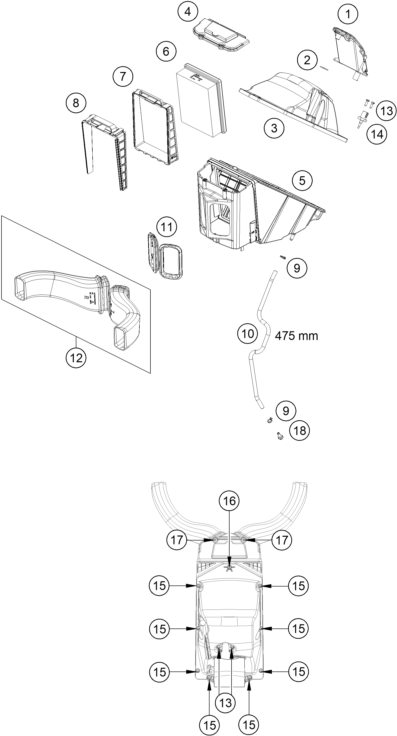

13 · RAM & CHASSIAir Filter18 POS→

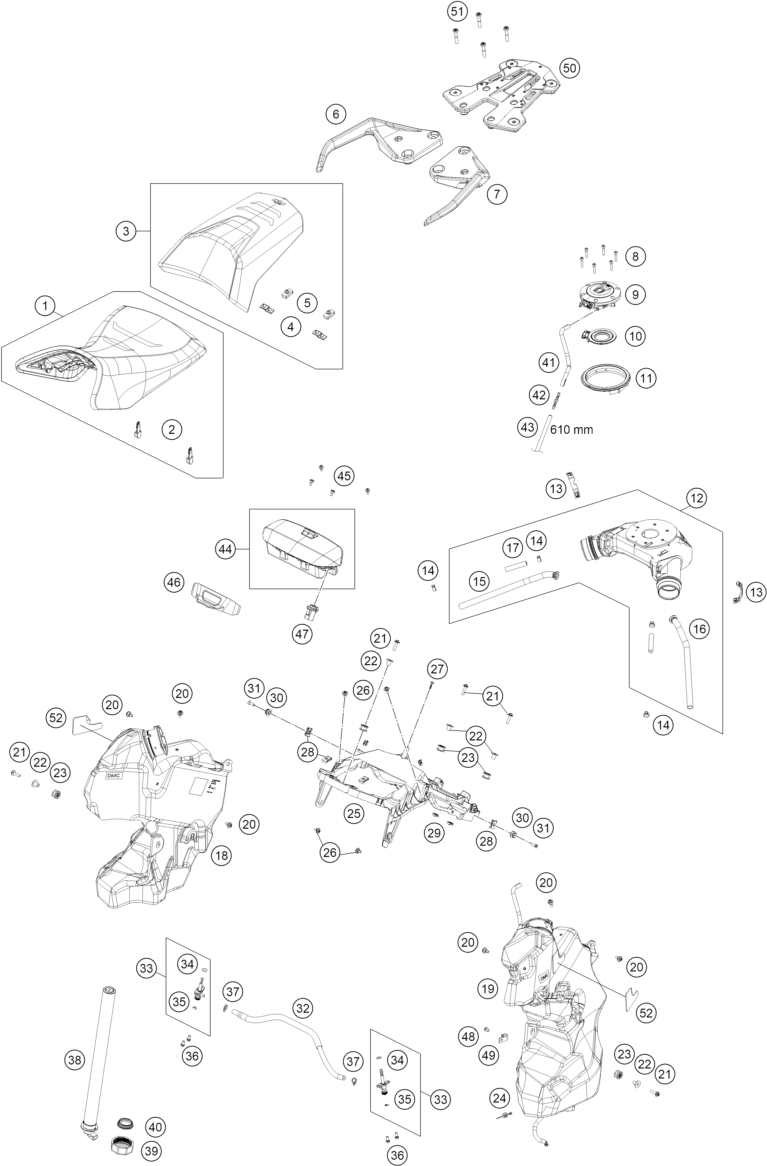

14 · RAM & CHASSITank, Seat52 POS→

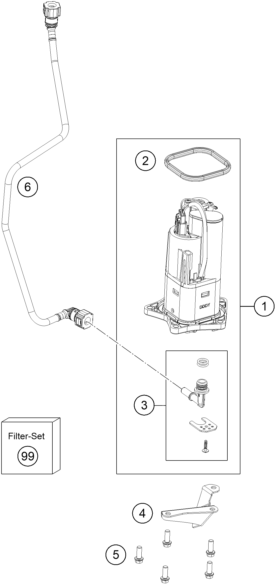

15 · RAM & CHASSIFuel Pump7 POS→

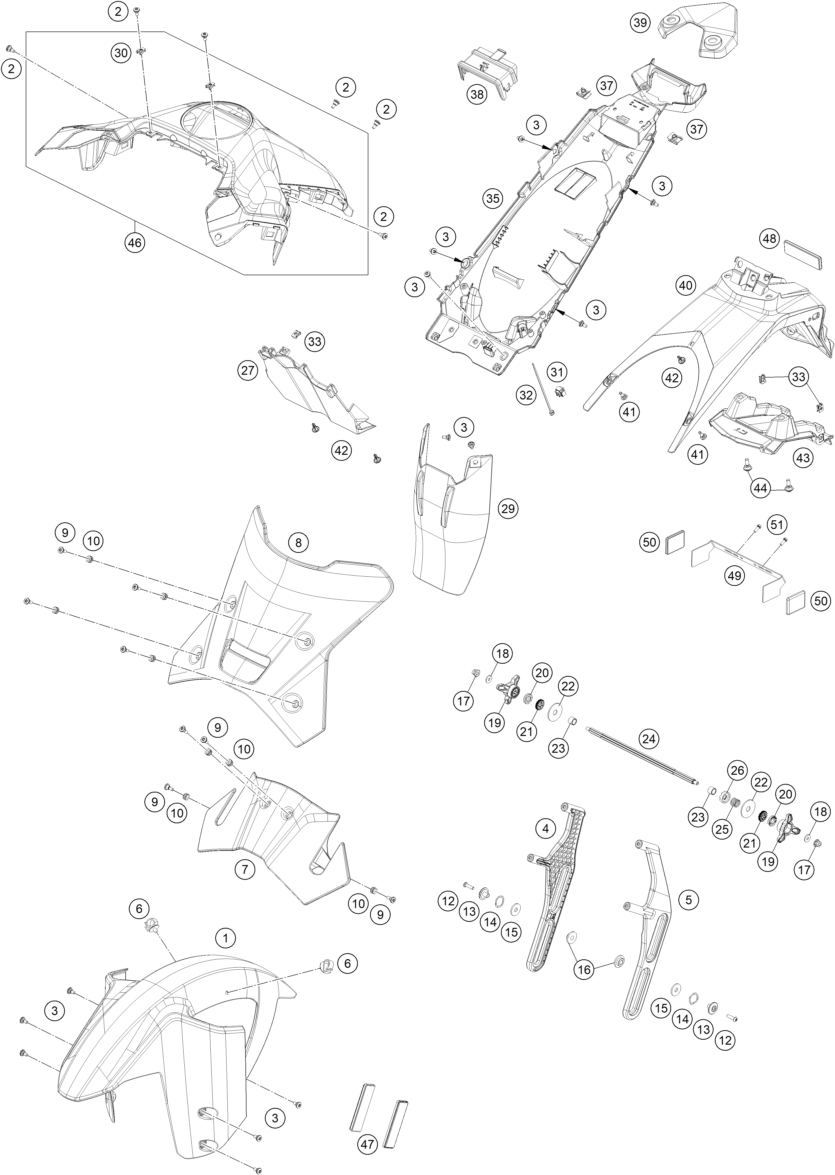

16 · RAM & CHASSIMask, Fenders46 POS→

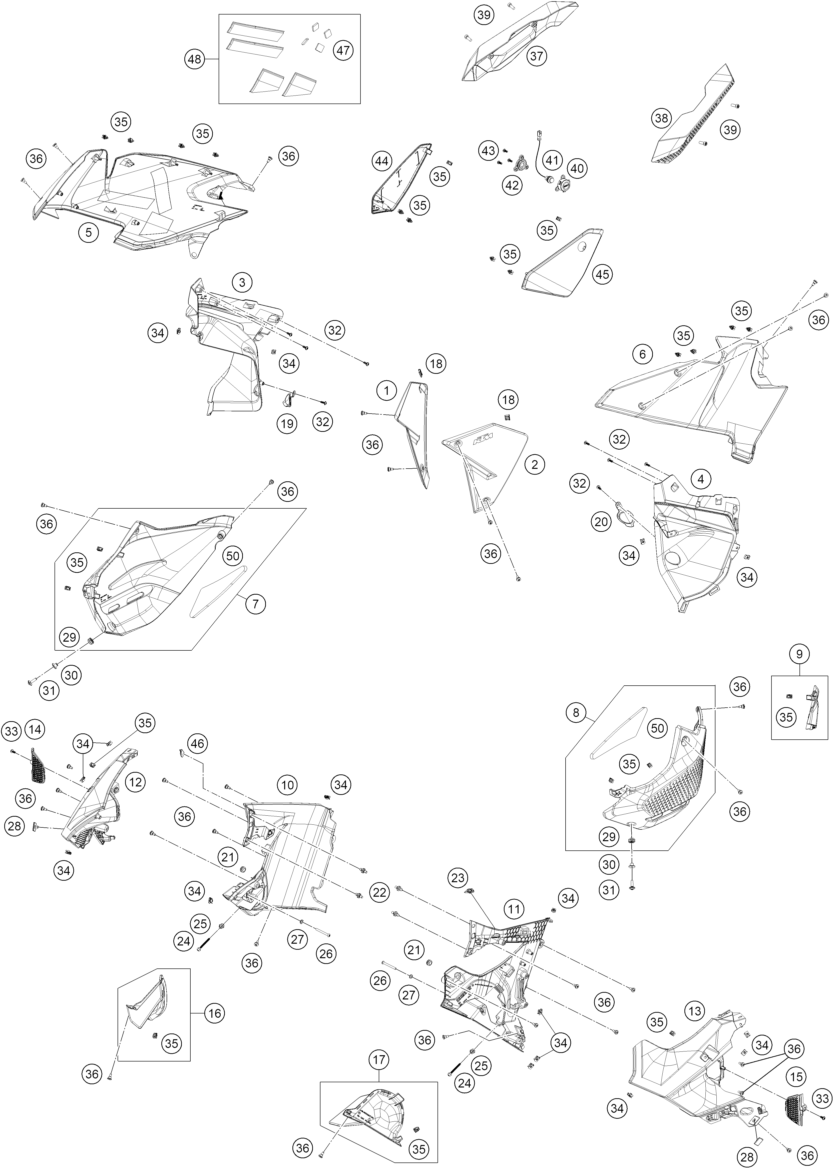

17 · RAM & CHASSISide Trim49 POS→

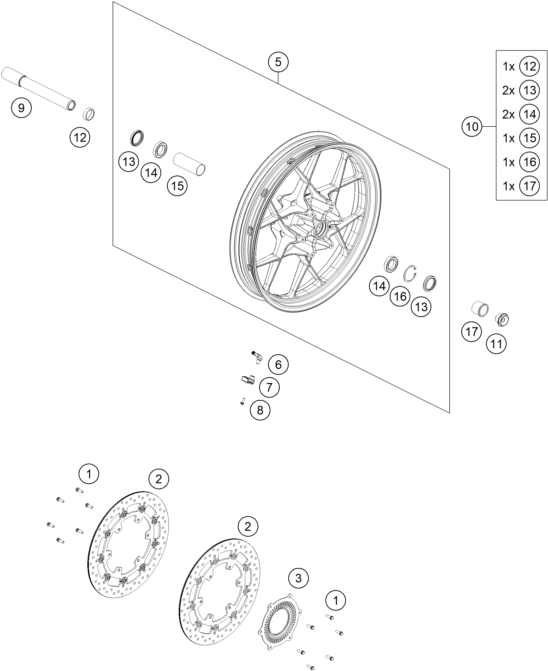

18 · RAM & CHASSIFront Wheel16 POS→

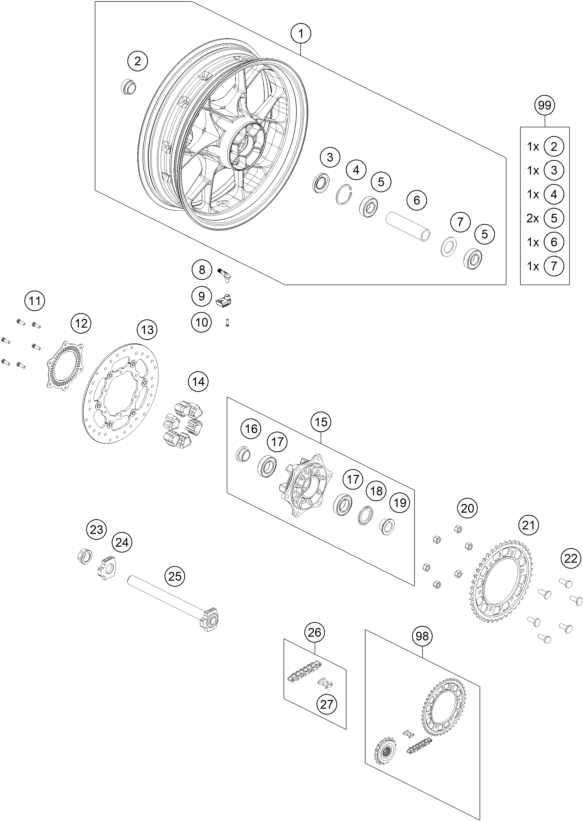

19 · RAM & CHASSIRear Wheel29 POS→

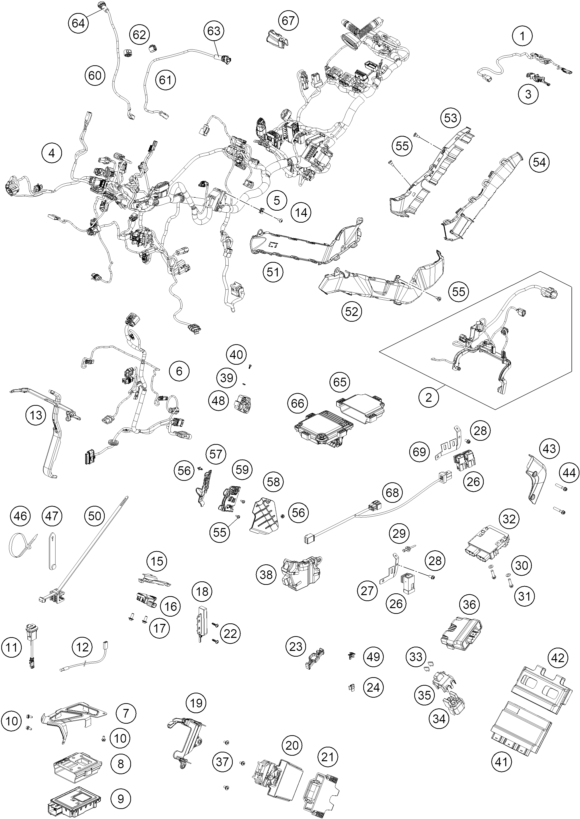

20 · RAM & CHASSIWiring Harness69 POS→

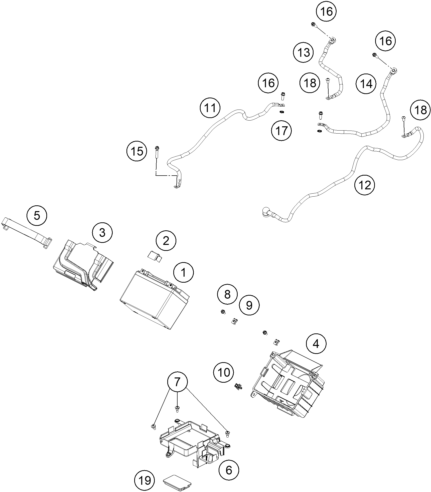

21 · RAM & CHASSIBattery19 POS→

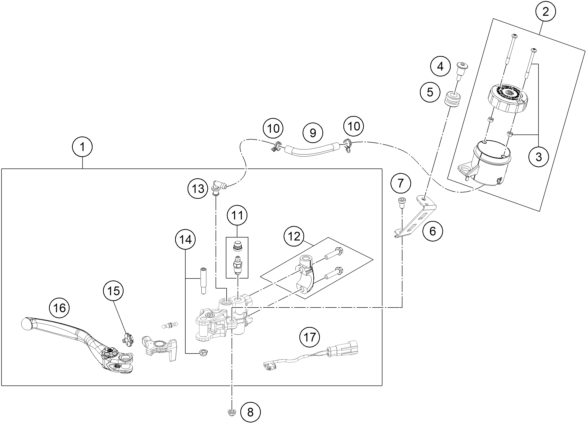

22 · RAM & CHASSIFront Brake Control17 POS→

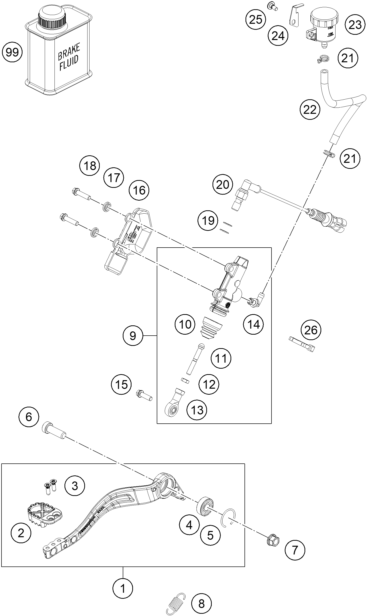

23 · RAM & CHASSIRear Brake Control27 POS→

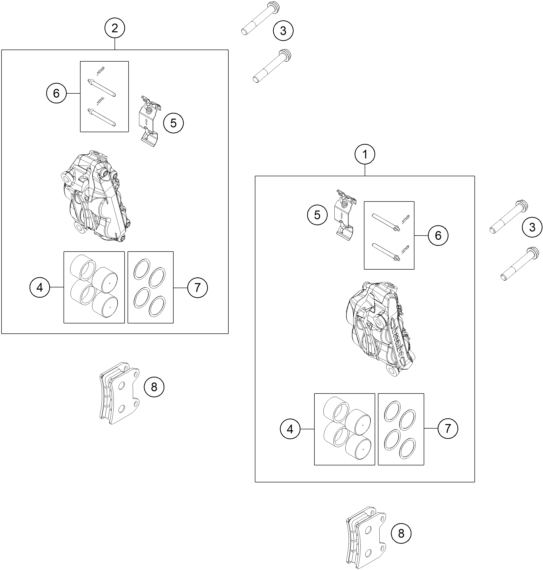

24 · RAM & CHASSIFront Brake Caliper8 POS→

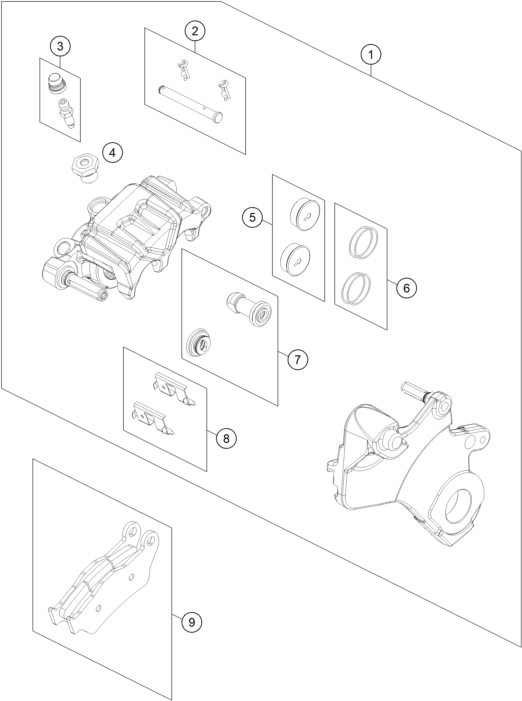

25 · RAM & CHASSIRear Brake Caliper9 POS→

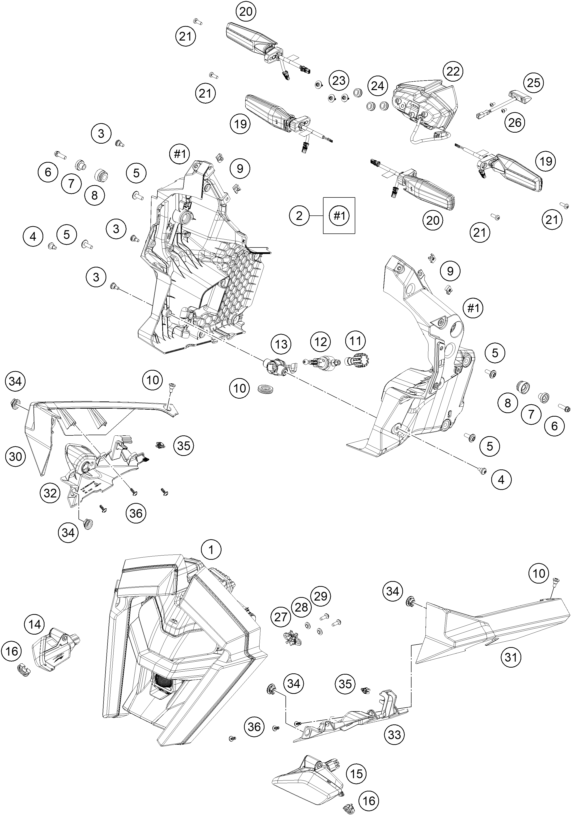

26 · RAM & CHASSILighting System34 POS→

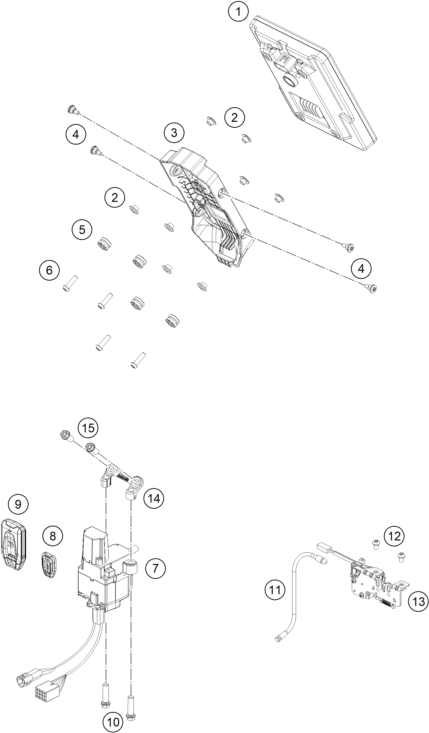

27 · RAM & CHASSIInstruments / Lock System15 POS→

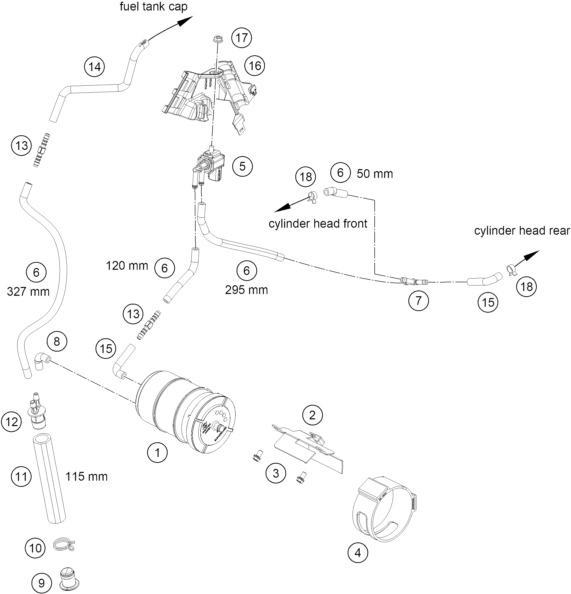

28 · RAM & CHASSIEvaporative Canister18 POS→

29 · RAM & CHASSIAccessory Pack26 POS→

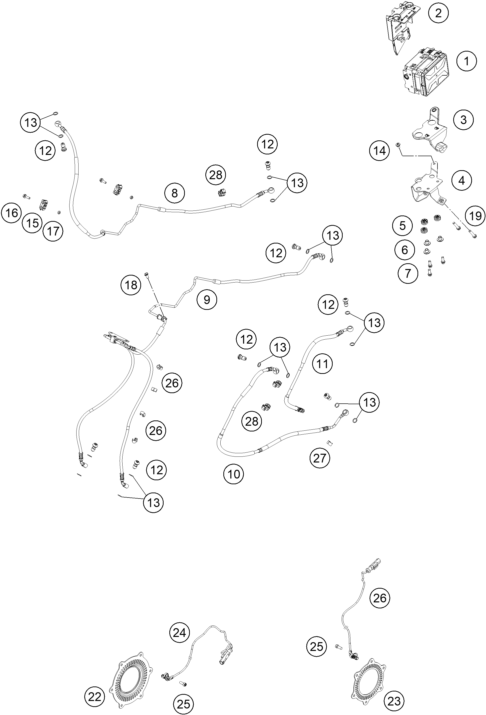

30 · RAM & CHASSIAbs26 POS→

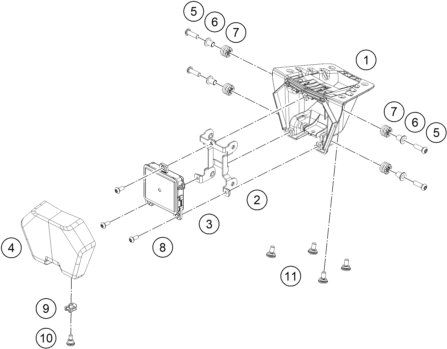

31 · RAM & CHASSIRider Assistance System11 POS→

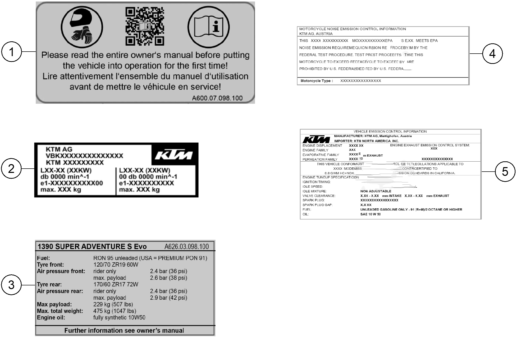

32 · RAM & CHASSITechnic Information Sticker5 POS→
