ÖVERSIKTAlla sprängskisser

48 GRUPPER

01 · MOTORSpecial Tools (Engine)20 POS→

02 · MOTOREngine Case31 POS→

03 · MOTORClutch Cover10 POS→

04 · MOTORBalancer Shaft4 POS→

05 · MOTORCylinder3 POS→

06 · MOTORCrankshaft, Piston23 POS→

07 · MOTORSecondary Air System Sas14 POS→

08 · MOTORClutch34 POS→

09 · MOTORTransmission I - Main Shaft21 POS→

10 · MOTORTransmission II - Countershaft24 POS→

11 · MOTORShifting Mechanism45 POS→

12 · MOTORWater Pump14 POS→

13 · MOTORCooling System32 POS→

14 · MOTORValve Drive35 POS→

15 · MOTORTiming Drive25 POS→

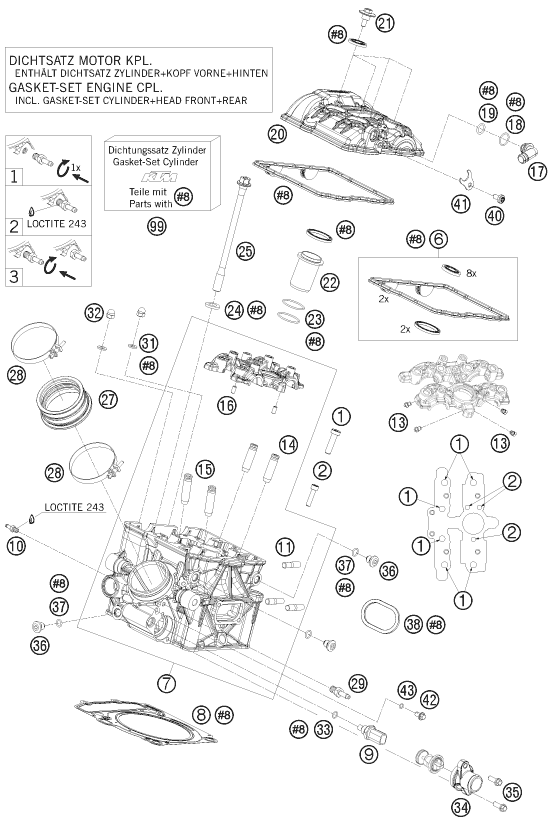

16 · MOTORCylinder Head Rear37 POS→

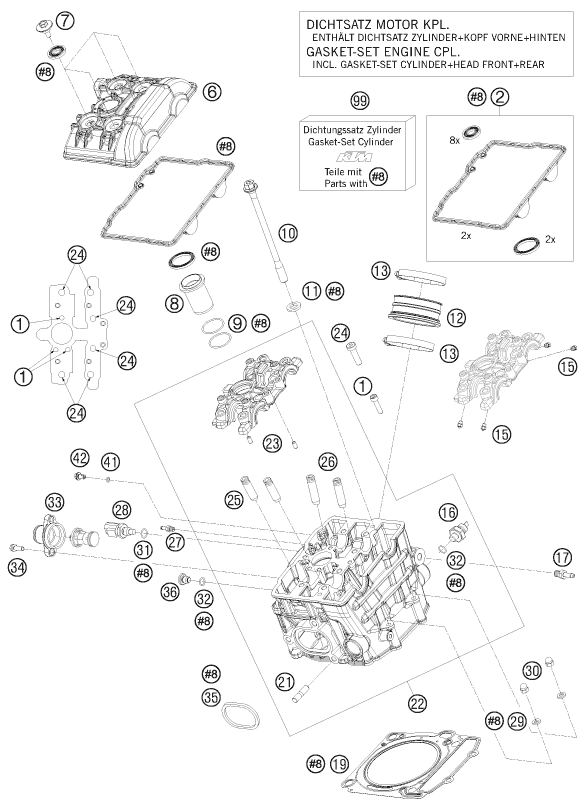

17 · MOTORCylinder Head Front33 POS→

18 · MOTORLubricating System41 POS→

19 · MOTORIgnition System18 POS→

20 · MOTORElectric Starter20 POS→

21 · MOTORThrottle Body26 POS→

01 · RAM & CHASSIFront Fork, Triple Clamp20 POS→

02 · RAM & CHASSIFront Fork Disassembled23 POS→

03 · RAM & CHASSIWp Shims For Setting240 POS→

04 · RAM & CHASSIHandlebar, Controls42 POS→

05 · RAM & CHASSIFrame46 POS→

06 · RAM & CHASSISide / Center Stand13 POS→

07 · RAM & CHASSIShock Absorber19 POS→

08 · RAM & CHASSIPro Lever Linking25 POS→

09 · RAM & CHASSISwing Arm29 POS→

10 · RAM & CHASSIExhaust System23 POS→

11 · RAM & CHASSIAir Filter31 POS→

12 · RAM & CHASSITank, Seat22 POS→

13 · RAM & CHASSIFuel Pump9 POS→

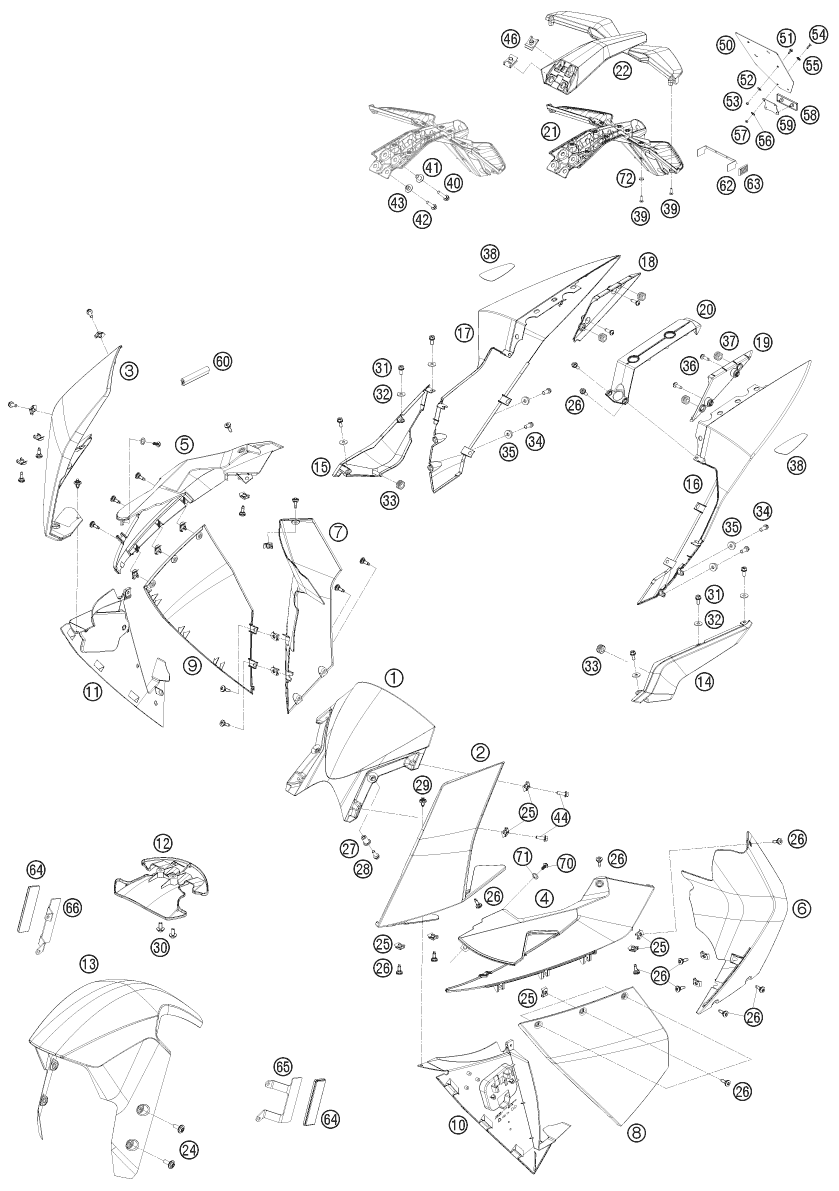

14 · RAM & CHASSIMask, Fenders63 POS→

15 · RAM & CHASSIDecal1 POS→

16 · RAM & CHASSIFront Wheel14 POS→

17 · RAM & CHASSIRear Wheel24 POS→

18 · RAM & CHASSIWiring Harness29 POS→

19 · RAM & CHASSIBattery24 POS→

20 · RAM & CHASSIFront Brake Control14 POS→

21 · RAM & CHASSIRear Brake Control18 POS→

22 · RAM & CHASSIFront Brake Caliper13 POS→

23 · RAM & CHASSIRear Brake Caliper10 POS→

24 · RAM & CHASSILighting System21 POS→

25 · RAM & CHASSIInstruments / Lock System15 POS→

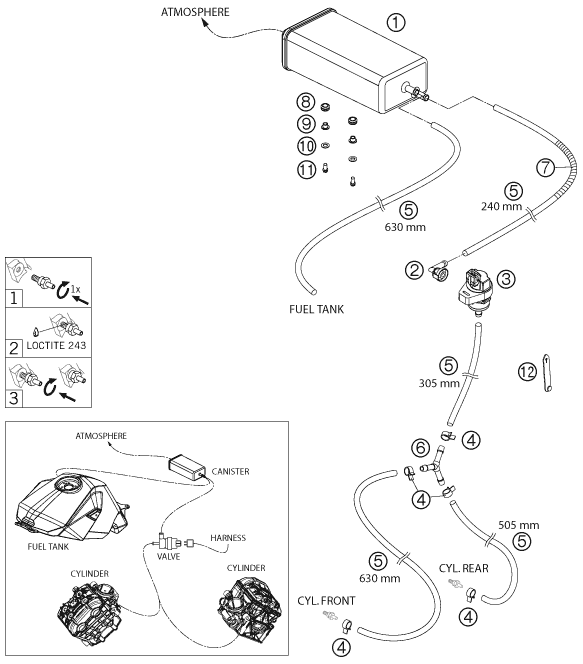

26 · RAM & CHASSIEvaporative Canister12 POS→

27 · RAM & CHASSIAccessory Pack27 POS→
