ÖVERSIKTAlla sprängskisser

48 GRUPPER

01 · MOTORSpecial Tools (Engine)48 POS→

02 · MOTOREngine Case41 POS→

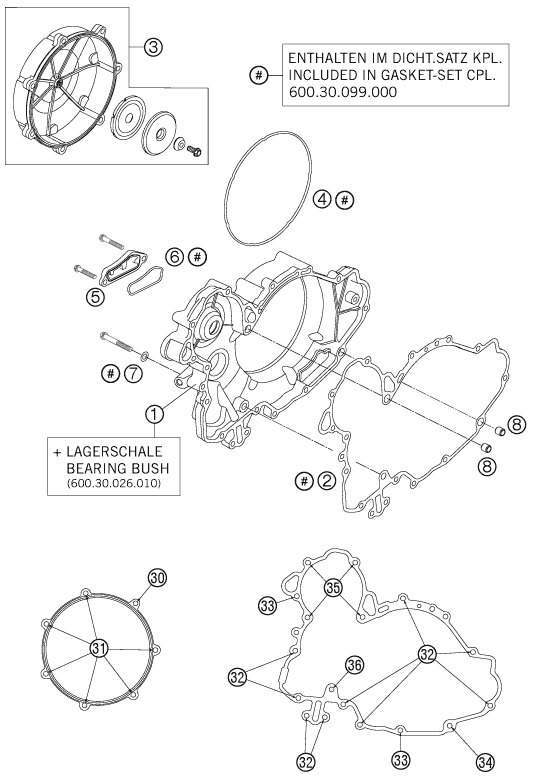

03 · MOTORClutch Cover15 POS→

04 · MOTORBalancer Shaft15 POS→

05 · MOTORCylinder7 POS→

06 · MOTORCrankshaft, Piston27 POS→

07 · MOTORSecondary Air System Sas11 POS→

08 · MOTORClutch28 POS→

09 · MOTORTransmission I - Main Shaft21 POS→

10 · MOTORTransmission II - Countershaft23 POS→

11 · MOTORShifting Mechanism33 POS→

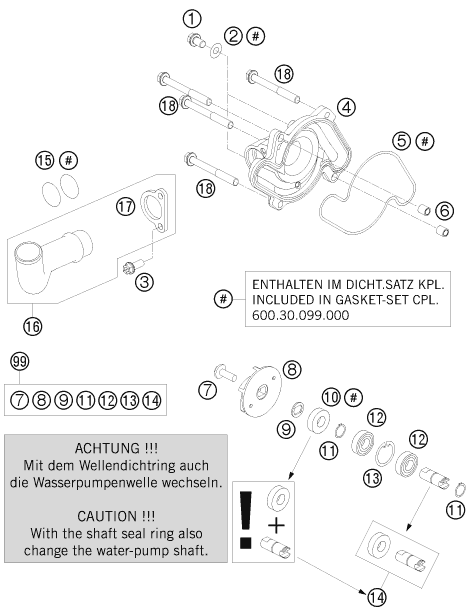

12 · MOTORWater Pump19 POS→

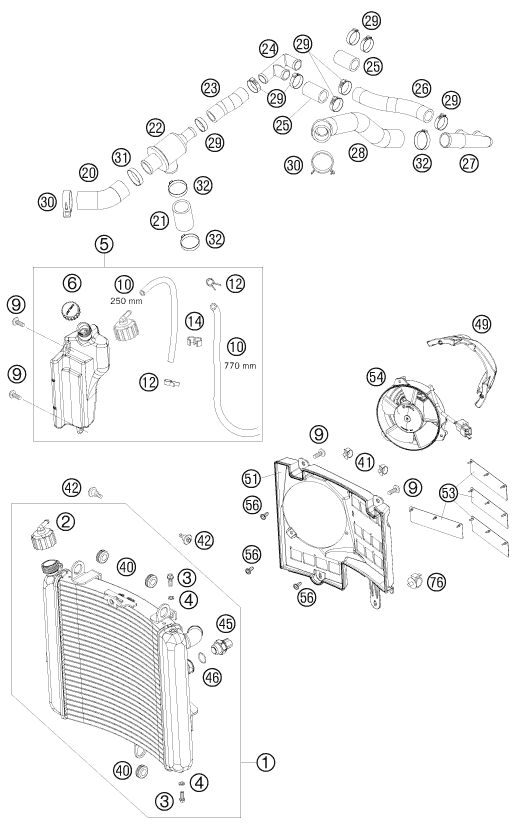

13 · MOTORCooling System34 POS→

14 · MOTORValve Drive36 POS→

15 · MOTORTiming Drive19 POS→

16 · MOTORCylinder Head Rear30 POS→

17 · MOTORCylinder Head Front36 POS→

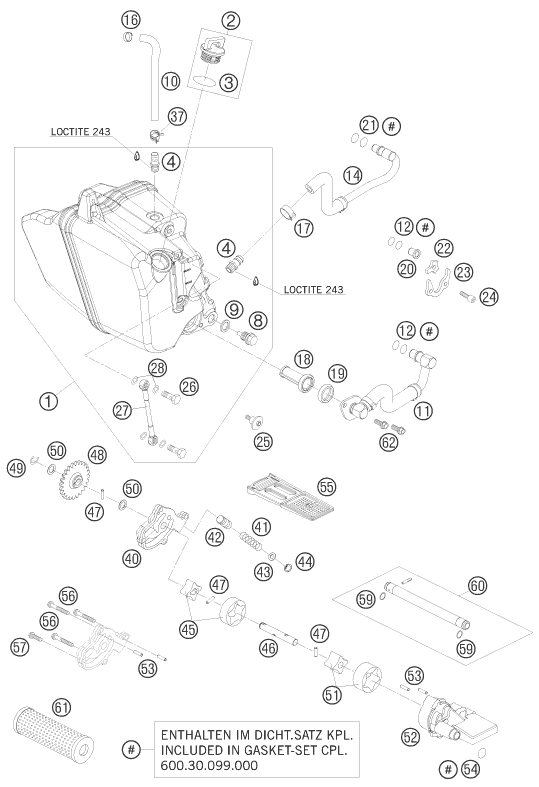

18 · MOTORLubricating System46 POS→

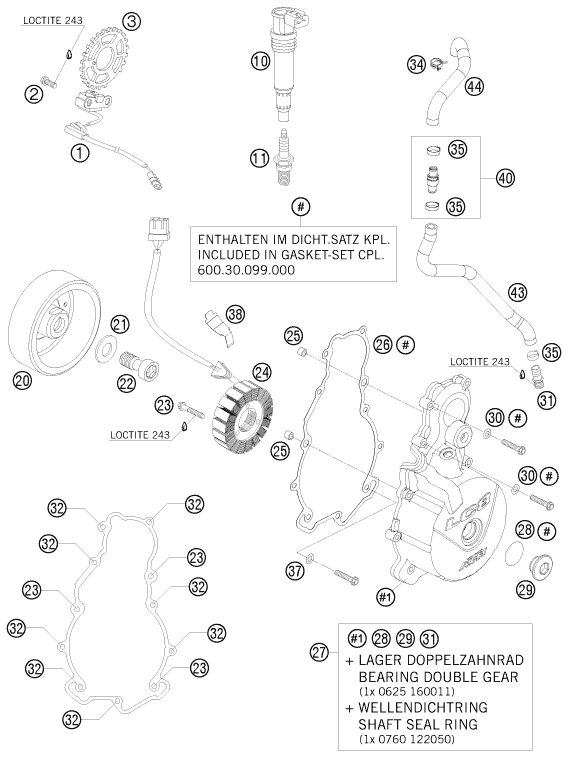

19 · MOTORIgnition System26 POS→

20 · MOTORElectric Starter21 POS→

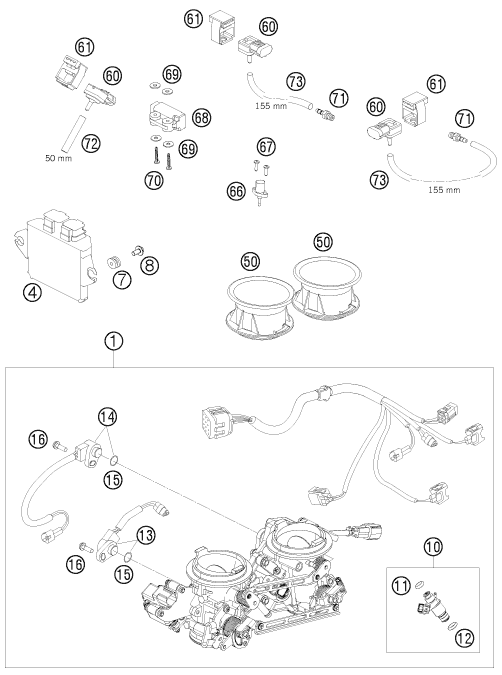

21 · MOTORThrottle Body22 POS→

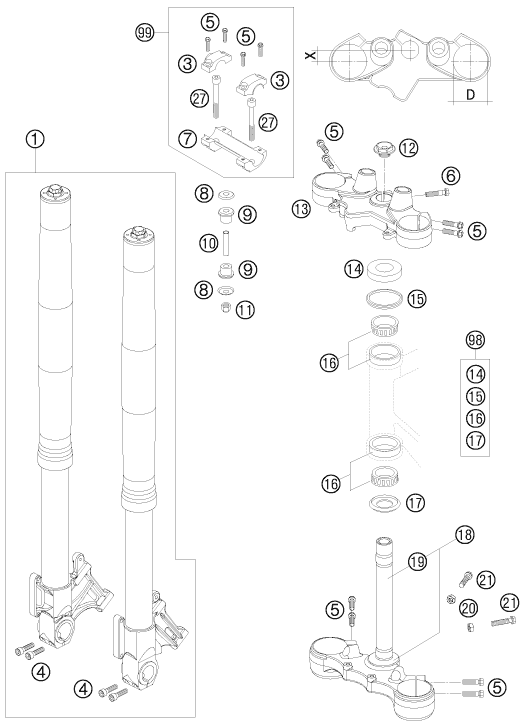

01 · RAM & CHASSIFront Fork, Triple Clamp23 POS→

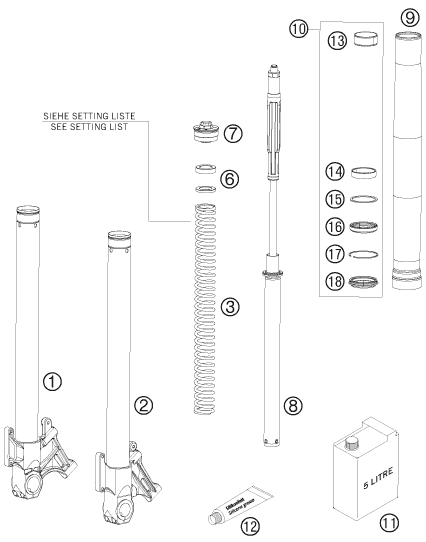

02 · RAM & CHASSIFront Fork Disassembled20 POS→

03 · RAM & CHASSIWp Shims For Setting240 POS→

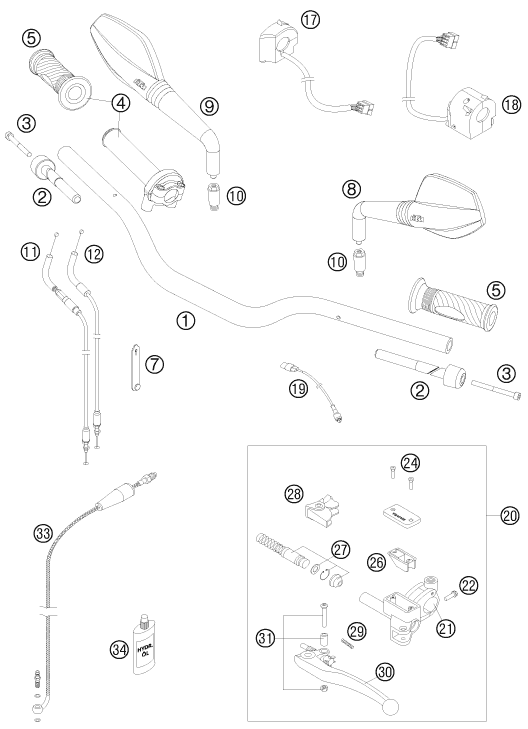

04 · RAM & CHASSIHandlebar, Controls26 POS→

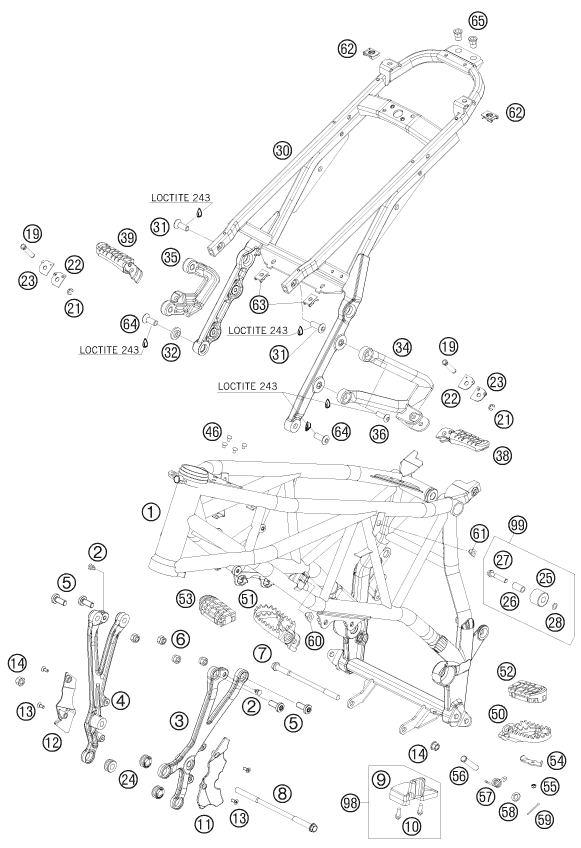

05 · RAM & CHASSIFrame50 POS→

06 · RAM & CHASSISide / Center Stand12 POS→

07 · RAM & CHASSIShock Absorber4 POS→

08 · RAM & CHASSIShock Absorber Disassembled13 POS→

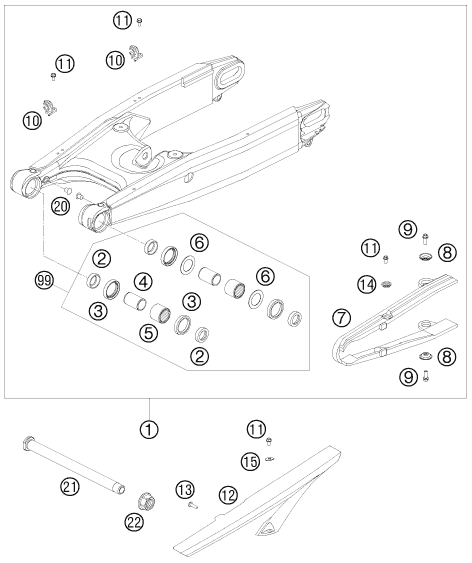

09 · RAM & CHASSISwing Arm19 POS→

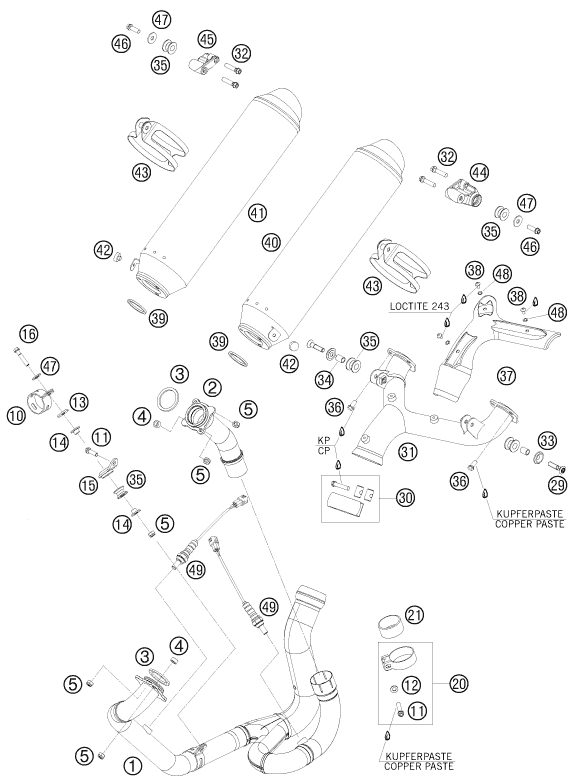

10 · RAM & CHASSIExhaust System37 POS→

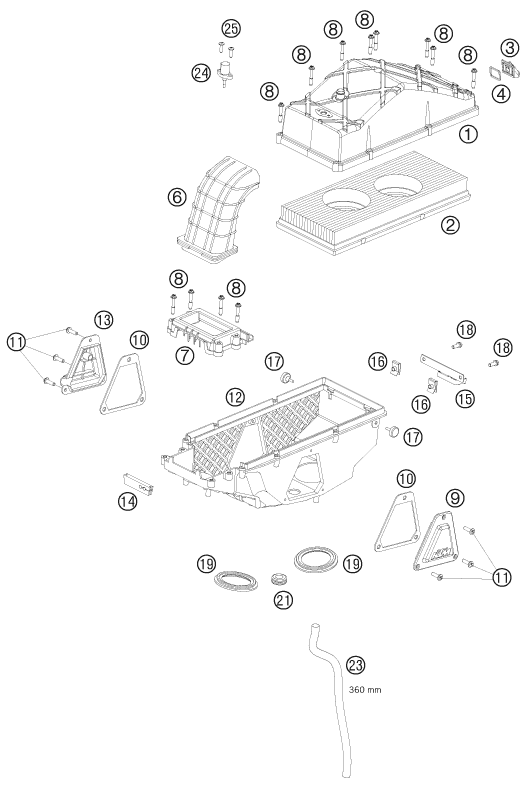

11 · RAM & CHASSIAir Filter22 POS→

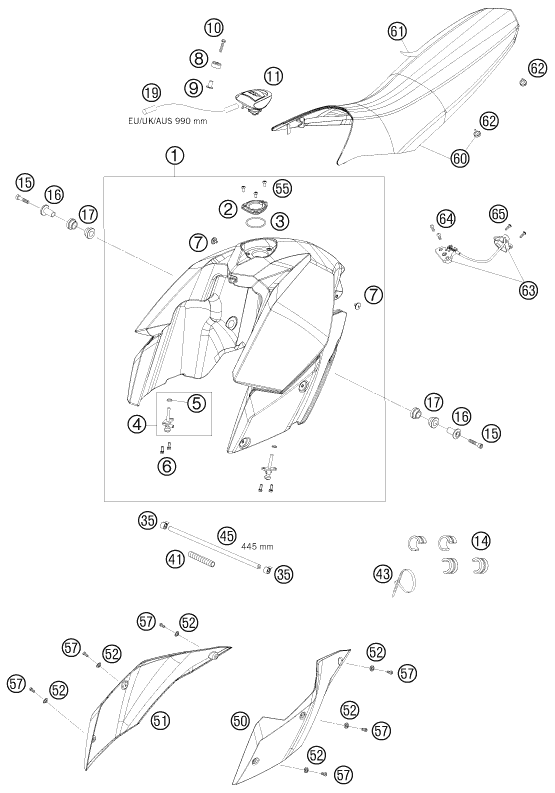

12 · RAM & CHASSITank, Seat31 POS→

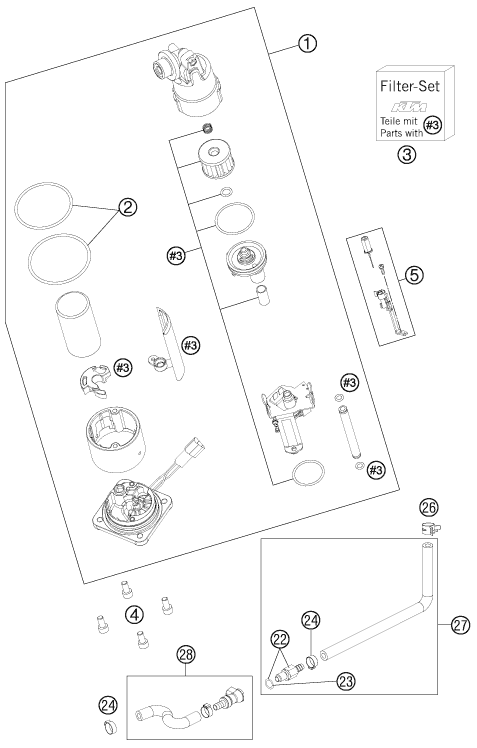

13 · RAM & CHASSIFuel Pump11 POS→

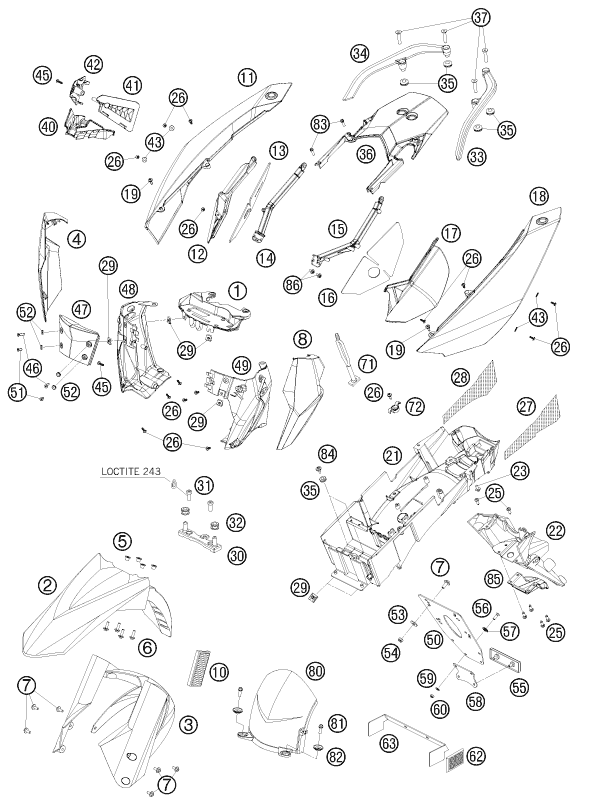

14 · RAM & CHASSIMask, Fenders65 POS→

15 · RAM & CHASSIDecal1 POS→

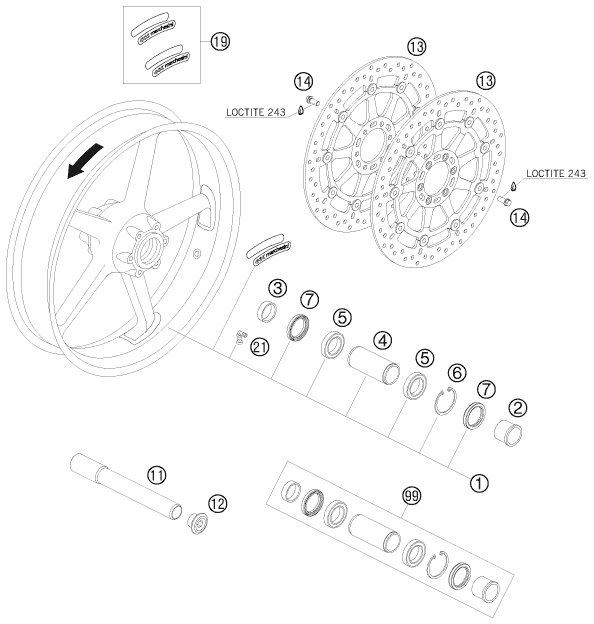

16 · RAM & CHASSIFront Wheel14 POS→

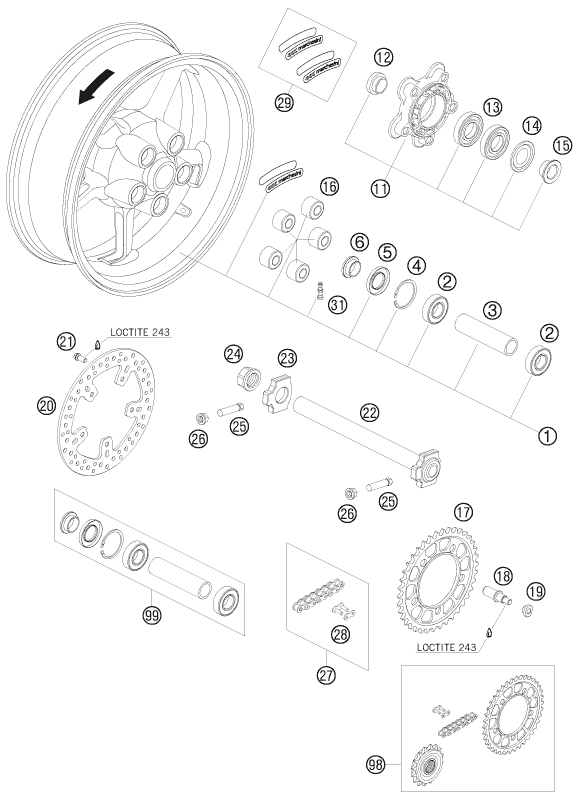

17 · RAM & CHASSIRear Wheel32 POS→

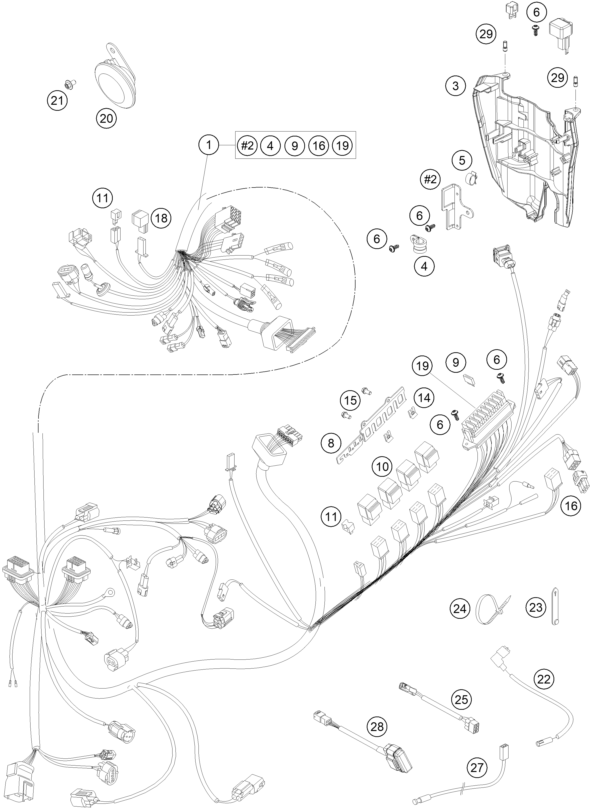

18 · RAM & CHASSIWiring Harness26 POS→

19 · RAM & CHASSIBattery19 POS→

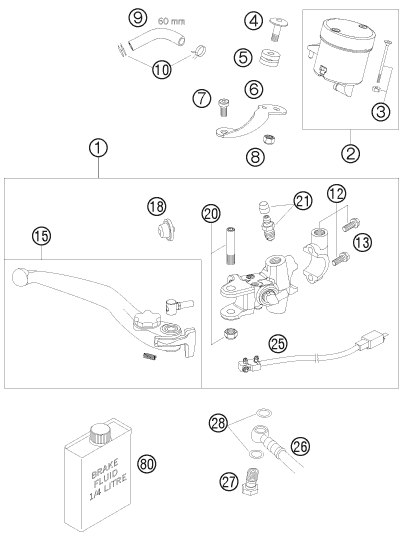

20 · RAM & CHASSIFront Brake Control21 POS→

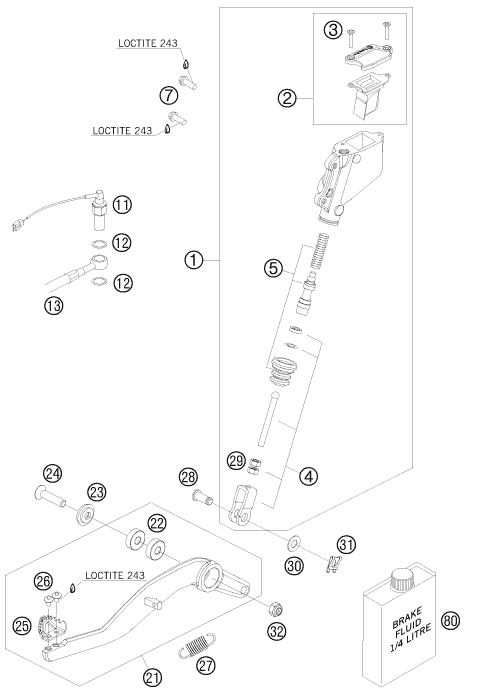

21 · RAM & CHASSIRear Brake Control22 POS→

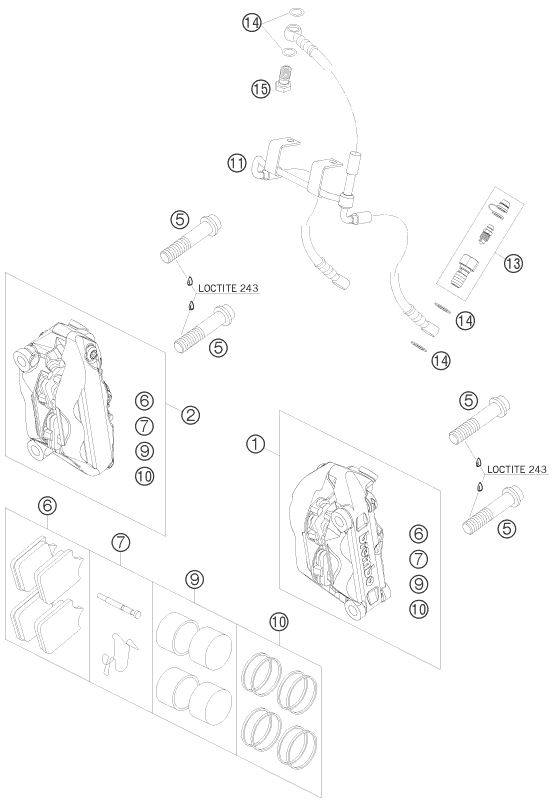

22 · RAM & CHASSIFront Brake Caliper11 POS→

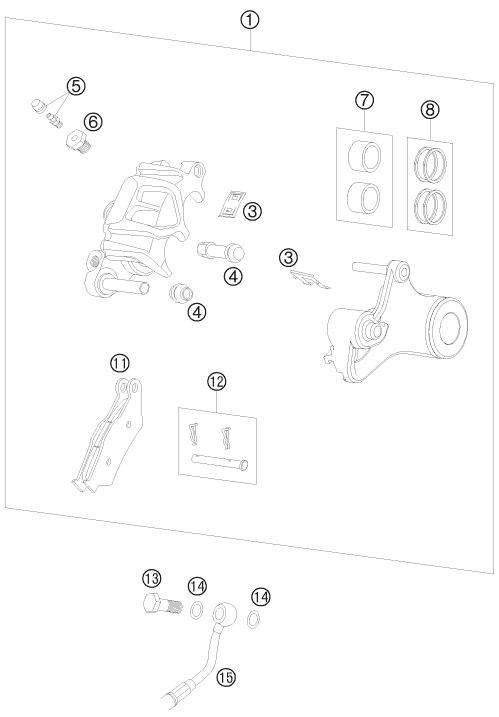

23 · RAM & CHASSIRear Brake Caliper13 POS→

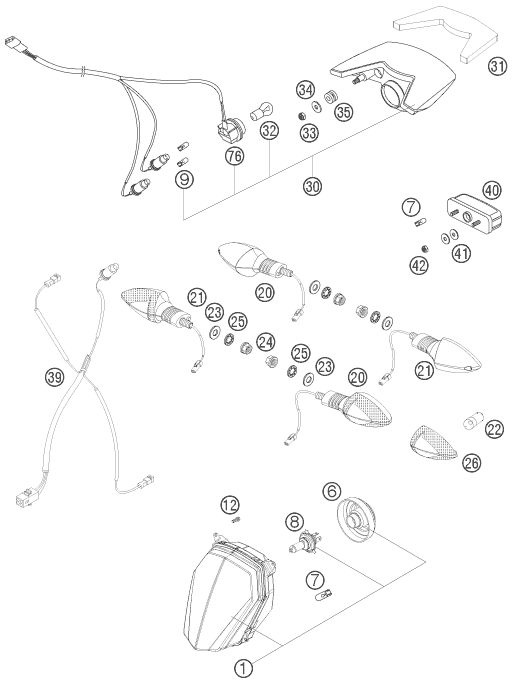

24 · RAM & CHASSILighting System24 POS→

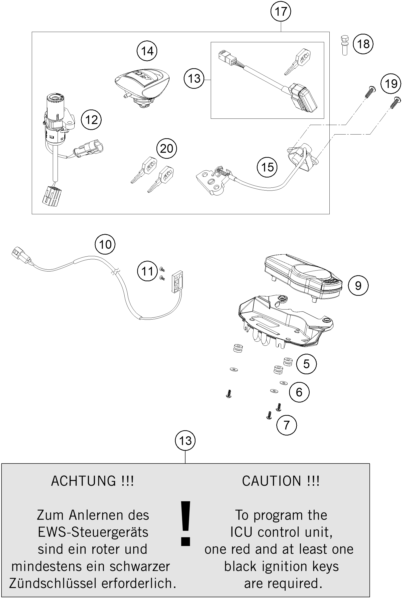

25 · RAM & CHASSIInstruments / Lock System14 POS→

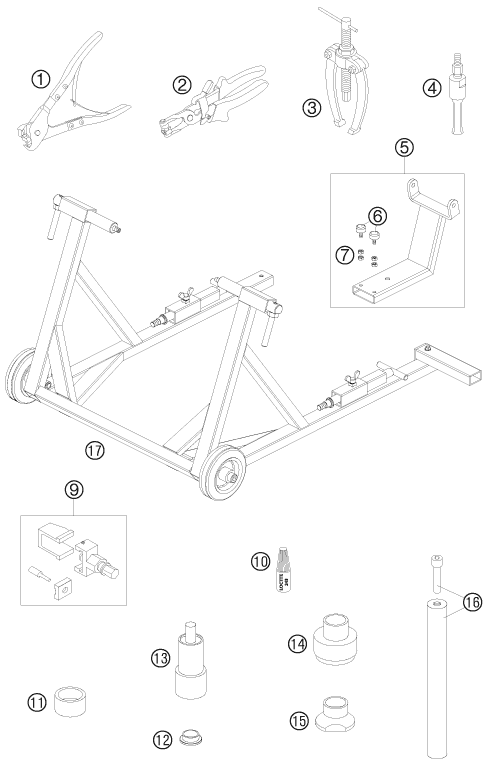

26 · RAM & CHASSISpecial Tools16 POS→

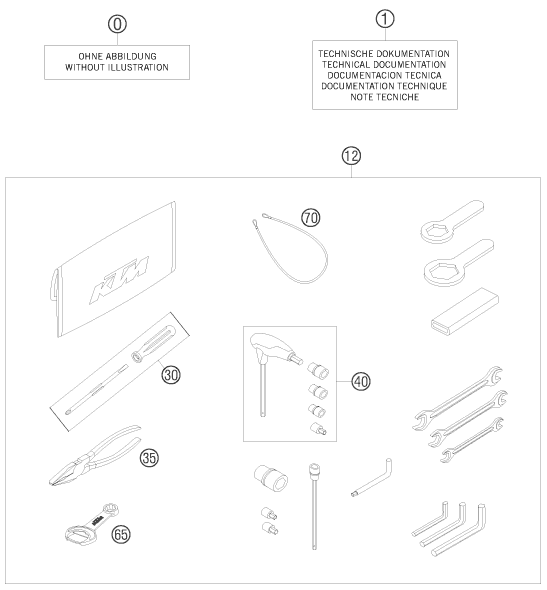

27 · RAM & CHASSIAccessory Pack23 POS→
