ÖVERSIKTAlla sprängskisser

47 GRUPPER

01 · MOTORDiagnostic Tool21 POS→

02 · MOTOREngine Case41 POS→

03 · MOTORClutch Cover15 POS→

04 · MOTORBalancer Shaft15 POS→

05 · MOTORCylinder7 POS→

06 · MOTORCrankshaft, Piston27 POS→

07 · MOTORSecondary Air System Sas11 POS→

08 · MOTORClutch28 POS→

09 · MOTORTransmission I - Main Shaft26 POS→

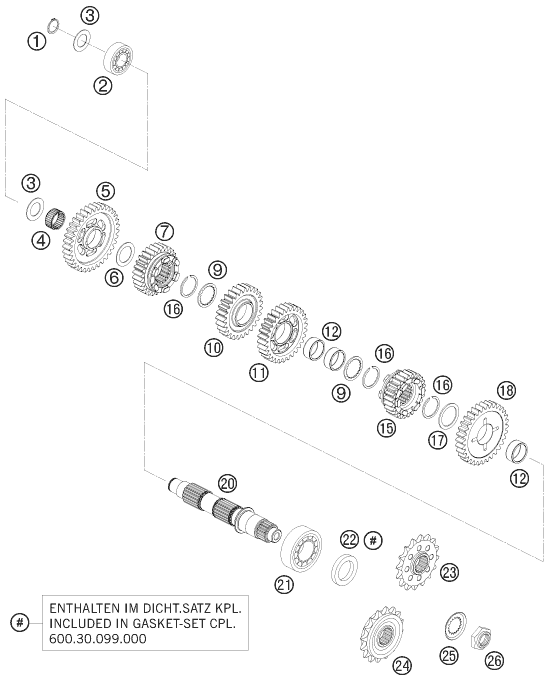

10 · MOTORTransmission II - Countershaft22 POS→

11 · MOTORShifting Mechanism33 POS→

12 · MOTORWater Pump19 POS→

13 · MOTORCooling System34 POS→

14 · MOTORValve Drive36 POS→

15 · MOTORTiming Drive19 POS→

16 · MOTORCylinder Head Rear30 POS→

17 · MOTORCylinder Head Front36 POS→

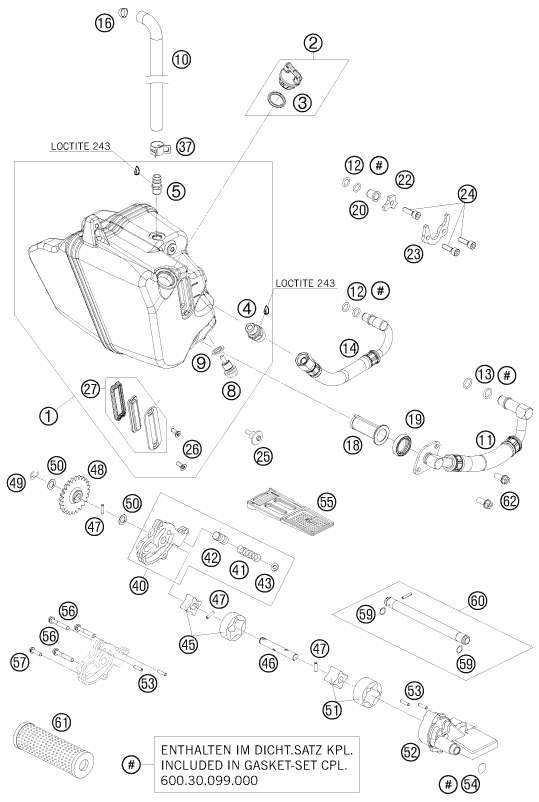

18 · MOTORLubricating System44 POS→

19 · MOTORIgnition System26 POS→

20 · MOTORElectric Starter21 POS→

21 · MOTORThrottle Body22 POS→

01 · RAM & CHASSIFront Fork, Triple Clamp23 POS→

02 · RAM & CHASSIFront Fork Disassembled18 POS→

03 · RAM & CHASSIWp Shims For Setting240 POS→

04 · RAM & CHASSIHandlebar, Controls26 POS→

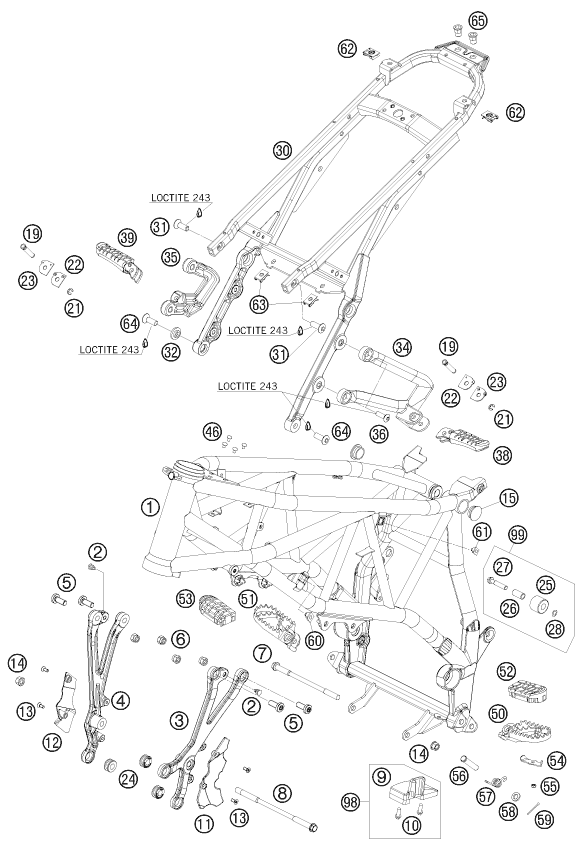

05 · RAM & CHASSIFrame51 POS→

06 · RAM & CHASSISide / Center Stand10 POS→

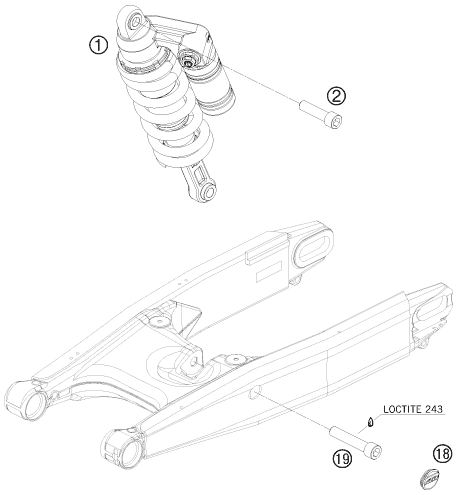

07 · RAM & CHASSIShock Absorber4 POS→

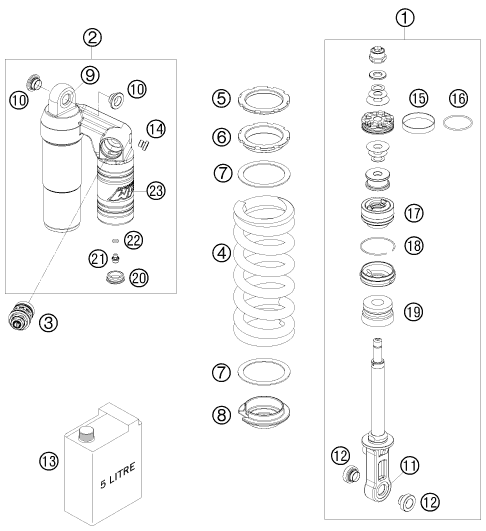

08 · RAM & CHASSIShock Absorber Disassembled23 POS→

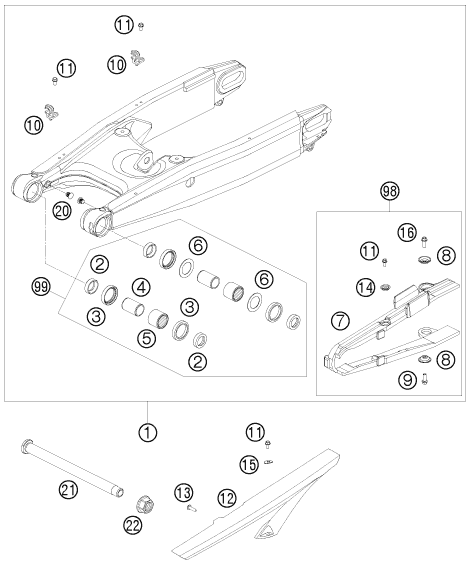

09 · RAM & CHASSISwing Arm21 POS→

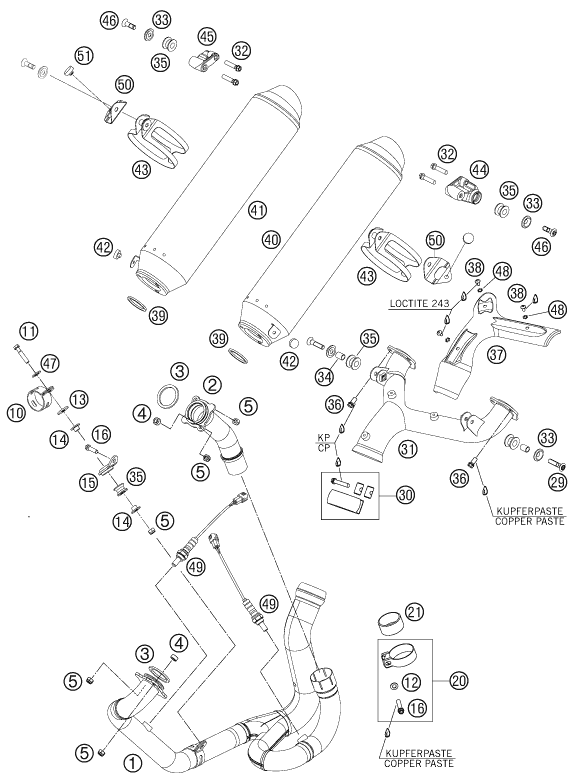

10 · RAM & CHASSIExhaust System37 POS→

11 · RAM & CHASSIAir Filter22 POS→

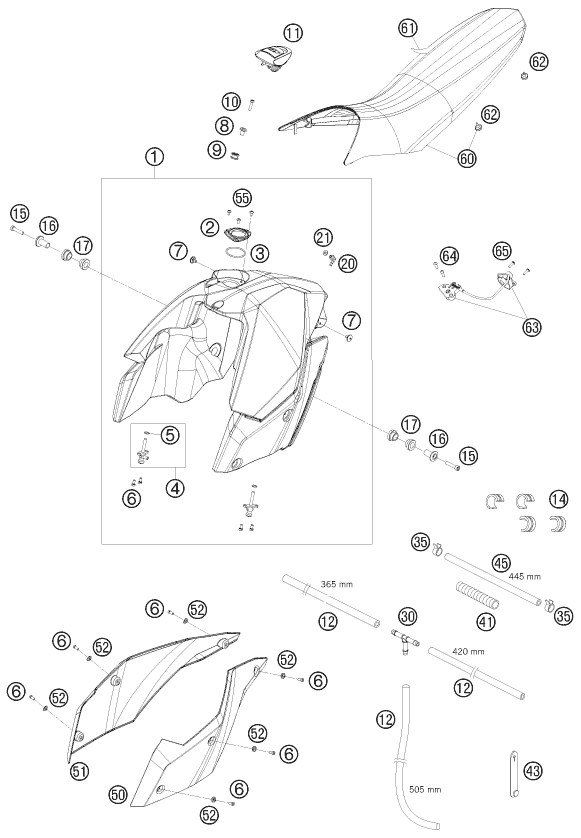

12 · RAM & CHASSITank, Seat33 POS→

13 · RAM & CHASSIFuel Pump11 POS→

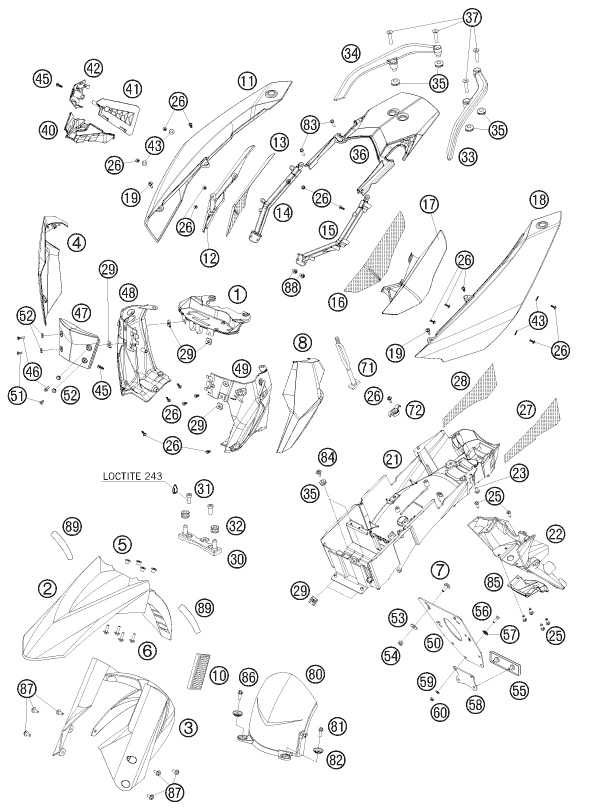

14 · RAM & CHASSIMask, Fenders66 POS→

15 · RAM & CHASSIDecal1 POS→

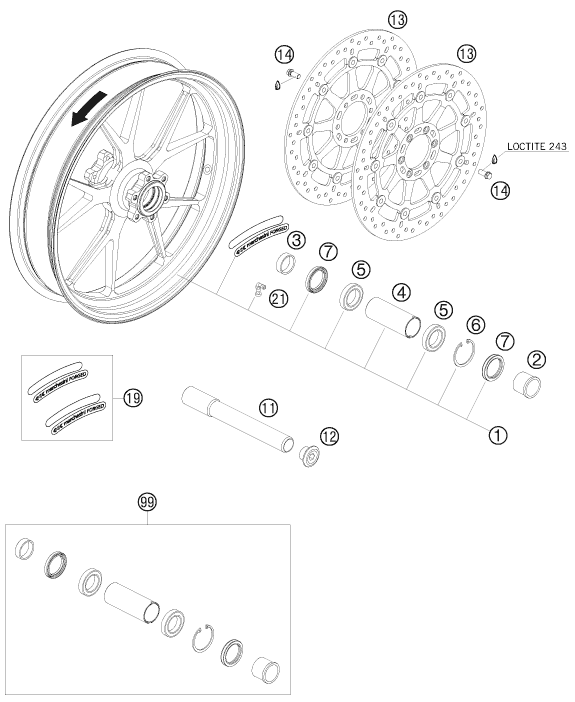

16 · RAM & CHASSIFront Wheel14 POS→

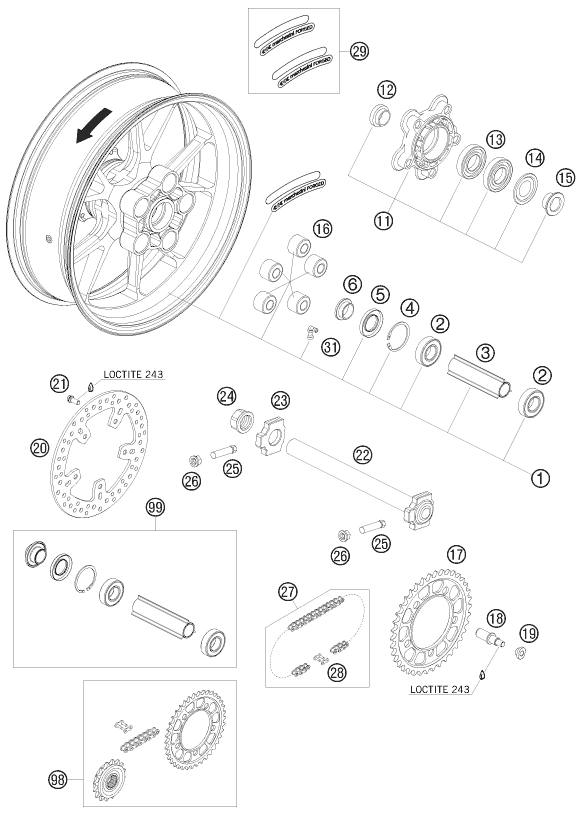

17 · RAM & CHASSIRear Wheel32 POS→

18 · RAM & CHASSIWiring Harness26 POS→

19 · RAM & CHASSIBattery19 POS→

20 · RAM & CHASSIFront Brake Control21 POS→

21 · RAM & CHASSIRear Brake Control22 POS→

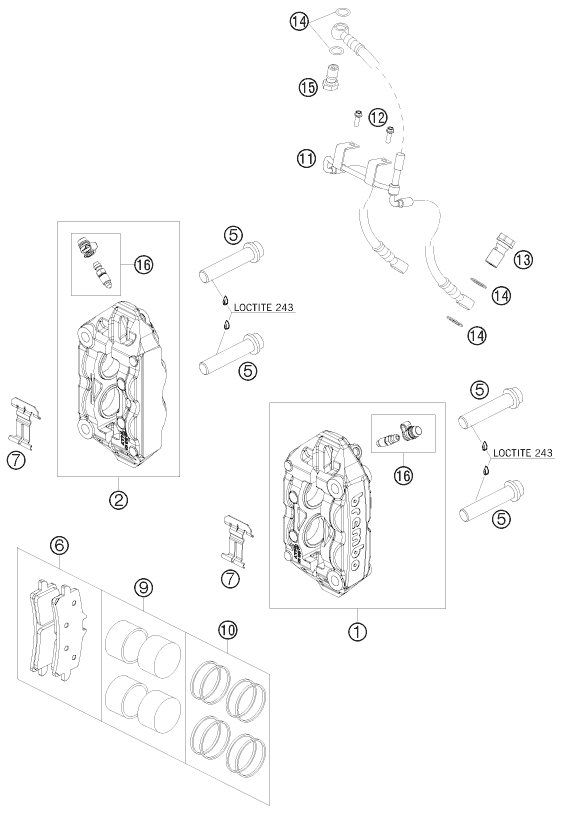

22 · RAM & CHASSIFront Brake Caliper13 POS→

23 · RAM & CHASSIRear Brake Caliper13 POS→

24 · RAM & CHASSILighting System24 POS→

25 · RAM & CHASSIInstruments / Lock System15 POS→

26 · RAM & CHASSIAccessory Pack24 POS→
